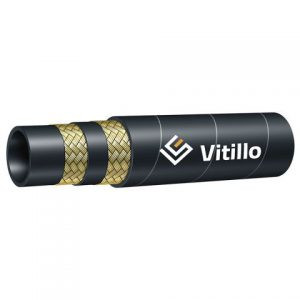

TEKNOMASTER

Brand : Vitillo

Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Weight	Cover Type
TM2SN04	6	6.4 mm 1/4 “	14.4 mm 0.57 inch	490 bar 7100 psi	1960 bar 28400 psi	75 mm 2.95 inch	0.34 kg/mt 0.23 lb/ft	Standard
TM2SN05	8	7.9 mm 5/16 “	16.0 mm 0.63 inch	480 bar 6960 psi	1920 bar 27840 psi	115 mm 4.53 inch	0.44 kg/mt 0.30 lb/ft	Standard
TM2SN06	10	9.5 mm 3/8 “	18.5 mm 0.73 inch	400 bar 5800 psi	1600 bar 23200 psi	125 mm 4.92 inch	0.51 kg/mt 0.34 lb/ft	Standard
TM2SN08	12	12.8 mm 1/2 “	22.1 mm 0.87 inch	360 bar 5240 psi	1440 bar 20960 psi	180 mm 7.09 inch	0.65 kg/mt 0.44 lb/ft	Standard
TM2SN10	16	16.0 mm 5/8 “	25.2 mm 0.99 inch	350 bar 5150 psi	1400 bar 20600 psi	200 mm 7.87 inch	0.79 kg/mt 0.53 lb/ft	Standard
TM2SN12	19	19.0 mm 3/4 “	29.1 mm 1.15 inch	320 bar 4650 psi	1280 bar 18600 psi	240 mm 9.45 inch	1.03 kg/mt 0.69 lb/ft	Standard
TM2SN16	25	25.4 mm 1 “	37.5 mm 1.48 inch	250 bar 3650 psi	1000 bar 14600 psi	300 mm 11.81 inch	1.45 kg/mt 0.97 lb/ft	Standard
