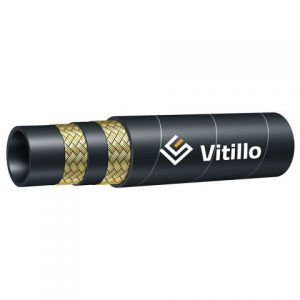

ICEBERG 2

Brand : Vitillo

Code	D.N.	Hose size	Outside Diameter	Max Working Pressure	Minimum Burst Pressure	Minimum Bend Radius	Weight	Cover Type
TH2SN03ICE	5	4.8 mm 3/16 “	13.3 mm 0.52 inch	415 bar 6010 psi	1660 bar 24040 psi	90 mm 3.54 inch	0.28 kg/mt 0.19 lb/ft	Standard
TH2SN04ICE	6	6.4 mm 1/4 “	14.8 mm 0.58 inch	400 bar 5800 psi	1600 bar 23200 psi	100 mm 3.94 inch	0.34 kg/mt 0.23 lb/ft	Standard
TH2SN05ICE	8	7.9 mm 5/16 “	16.5 mm 0.65 inch	350 bar 5070 psi	1400 bar 20280 psi	115 mm 4.53 inch	0.44 kg/mt 0.30 lb/ft	Standard
TH2SN06ICE	10	9.5 mm 3/8 “	18.9 mm 0.74 inch	330 bar 4780 psi	1320 bar 19120 psi	130 mm 5.12 inch	0.52 kg/mt 0.35 lb/ft	Standard
TH2SN08ICE	12	12.8 mm 1/2 “	22.0 mm 0.87 inch	275 bar 3980 psi	1100 bar 15920 psi	180 mm 7.09 inch	0.61 kg/mt 0.41 lb/ft	Standard
TH2SN10ICE	16	16.0 mm 5/8 “	25.2 mm 0.99 inch	250 bar 3620 psi	1000 bar 14480 psi	200 mm 7.87 inch	0.75 kg/mt 0.50 lb/ft	Standard
TH2SN12ICE	19	19.0 mm 3/4 “	29.2 mm 1.15 inch	215 bar 3110 psi	860 bar 12440 psi	240 mm 9.45 inch	0.95 kg/mt 0.64 lb/ft	Standard
TH2SN16ICE	25	25.4 mm 1 “	37.1 mm 1.46 inch	165 bar 2390 psi	660 bar 9560 psi	300 mm 11.81 inch	1.34 kg/mt 0.90 lb/ft	Standard
TH2SN20ICE	31	31.8 mm 1 1/4 “	47.0 mm 1.85 inch	125 bar 1810 psi	500 bar 7240 psi	420 mm 16.54 inch	1.85 kg/mt 1.24 lb/ft	Standard
TH2SN24ICE	38	38.1 mm 1 1/2 “	53.5 mm 2.11 inch	100 bar 1450 psi	400 bar 5800 psi	500 mm 19.69 inch	2.25 kg/mt 1.51 lb/ft	Standard
TH2SN32ICE	51	50.8 mm 2 “	66.2 mm 2.61 inch	90 bar 1305 psi	360 bar 5220 psi	630 mm 24.80 inch	3.20 kg/mt 2.15 lb/ft	Standard
