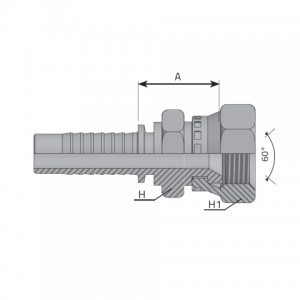

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | H mm | H inch | H1 mm | H1 inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FDT0404 | -4 | 6.40 mm 1/4 “ |
1/4 | 19.0 | 51.00 | 2.010 “ | 17 | 0.670 “ | 19 | 0.750 “ | 350 bar 5076 psi |
| FDT0606 | -6 | 9.50 mm 3/8 “ |
3/8 | 19.0 | 54.00 | 2.130 “ | 19 | 0.750 “ | 22 | 0.870 “ | 280 bar 4061 psi |
| FDT0808 | -8 | 12.80 mm 1/2 “ |
1/2 | 14.0 | 60.50 | 2.380 “ | 22 | 0.870 “ | 27 | 1.060 “ | 200 bar 2901 psi |
| FDT1212 | -12 | 19.00 mm 3/4 “ |
3/4 | 14.0 | 70.50 | 2.780 “ | 27 | 1.060 “ | 32 | 1.260 “ | 200 bar 2901 psi |
| FDT1616 | -16 | 25.40 mm 1 “ |
1 | 11.0 | 88.00 | 3.460 “ | 32 | 1.260 “ | 38 | 1.500 “ | 160 bar 2320 psi |
| FDT2020 | -20 | 31.80 mm 1 1/4 “ |
1 1/4 | 11.0 | 97.50 | 3.840 “ | 41 | 1.610 “ | 50 | 1.970 “ | 125 bar 1813 psi |
| FDT2424 | -24 | 38.10 mm 1 1/2 “ |
1 1/2 | 11.0 | 110.50 | 4.350 “ | 50 | 1.970 “ | 55 | 2.170 “ | 100 bar 1450 psi |
