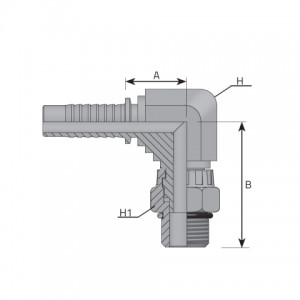

O-ring boss swivel male 90° elbow. (MOB90 SW)

Brand : Vitillo


Code	D.N.	Hose size	T inch	T/1 inch	A mm	A inch	B mm	B inch	H mm	H inch	H1 mm	H1 inch	Pressure
MOB900404SW	-4	6.40 mm 1/4 “	7/16	20.0	23.00	0.910 “	52.00	2.050 “	22	0.870 “	17	0.670 “	350 bar 5076 psi
MOB900406SW	-4	6.40 mm 1/4 “	9/16	18.0	23.00	0.910 “	54.40	2.140 “	22	0.870 “	22	0.870 “	350 bar 5076 psi
MOB900604SW	-6	9.50 mm 3/8 “	7/16	20.0	23.00	0.910 “	52.00	2.050 “	22	0.870 “	17	0.670 “	350 bar 5076 psi
MOB900606SW	-6	9.50 mm 3/8 “	9/16	18.0	23.00	0.910 “	54.40	2.140 “	22	0.870 “	22	0.870 “	350 bar 5076 psi
MOB900608SW	-6	9.50 mm 3/8 “	3/4	16.0	23.00	0.910 “	57.50	2.260 “	22	0.870 “	27	1.060 “	350 bar 5076 psi
MOB900806SW	-8	12.80 mm 1/2 “	9/16	18.0	23.50	0.930 “	54.40	2.140 “	22	0.870 “	22	0.870 “	350 bar 5076 psi
MOB900808SW	-8	12.80 mm 1/2 “	3/4	16.0	23.50	0.930 “	57.50	2.260 “	22	0.870 “	27	1.060 “	350 bar 5076 psi
MOB900812SW	-8	12.80 mm 1/2 “	1 1/16	12.0	23.50	0.930 “	71.50	2.810 “	27	1.060 “	32	1.260 “	280 bar 4061 psi
MOB901212SW	-12	19.00 mm 3/4 “	1 1/16	12.0	25.00	0.980 “	71.50	2.810 “	27	1.060 “	32	1.260 “	280 bar 4061 psi
MOB901616SW	-16	25.40 mm 1 “	1 5/16	12.0	32.50	1.280 “	72.50	2.850 “	33	1.300 “	38	1.500 “	200 bar 2901 psi
