NPTF swivel male. (MNPT SW)

Brand : Vitillo

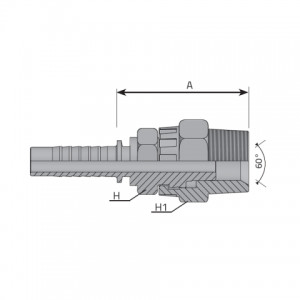

Code	D.N.	Hose size	T inch	T/1 inch	A mm	A inch	H mm	H inch	H1 mm	H1 inch	Pressure
MNPTF0404SW	-4	6.40 mm 1/4 “	1/4	18.0	53.00	2.090 “	14	0.550 “	17	0.670 “	350 bar 5076 psi
MNPTF0406SW	-4	6.40 mm 1/4 “	3/8	18.0	58.40	2.300 “	17	0.670 “	22	0.870 “	350 bar 5076 psi
MNPTF0604SW	-6	9.50 mm 3/8 “	1/4	18.0	56.00	2.200 “	17	0.670 “	17	0.670 “	350 bar 5076 psi
MNPTF0606SW	-6	9.50 mm 3/8 “	3/8	18.0	58.40	2.300 “	17	0.670 “	22	0.870 “	350 bar 5076 psi
MNPTF0608SW	-6	9.50 mm 3/8 “	1/2	14.0	63.00	2.480 “	22	0.870 “	20	0.790 “	350 bar 5076 psi
MNPTF0806SW	-8	12.80 mm 1/2 “	3/8	18.0	59.40	2.340 “	22	0.870 “	22	0.870 “	350 bar 5076 psi
MNPTF0808SW	-8	12.80 mm 1/2 “	1/2	14.0	63.50	2.500 “	22	0.870 “	27	1.060 “	350 bar 5076 psi
MNPTF0812SW	-8	12.80 mm 1/2 “	3/4	14.0	71.50	2.810 “	27	1.060 “	32	1.260 “	280 bar 4061 psi
MNPTF1212SW	-12	19.00 mm 3/4 “	3/4	14.0	72.00	2.830 “	32	1.260 “	32	1.260 “	280 bar 4061 psi
MNPTF1616SW	-16	25.40 mm 1 “	1	11.5	79.40	3.130 “	38	1.500 “	38	1.500 “	200 bar 2901 psi
