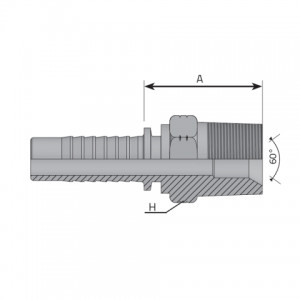

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| MNPT0302 | -3 | 4.80 mm 3/16 “ |
1/8 | 27.0 | 22.00 | 0.870 “ | 12 | 0.470 “ | 350 bar 5076 psi |
| MNPT0304 | -3 | 4.80 mm 3/16 “ |
1/4 | 18.0 | 22.00 | 0.870 “ | 15 | 0.590 “ | 415 bar 6019 psi |
| MNPT0402 | -4 | 6.40 mm 1/4 “ |
1/8 | 27.0 | 22.50 | 0.890 “ | 12 | 0.470 “ | 350 bar 5076 psi |
| MNPT0404 | -4 | 6.40 mm 1/4 “ |
1/4 | 18.0 | 27.00 | 1.060 “ | 15 | 0.590 “ | 450 bar 6526 psi |
| MNPT0406 | -4 | 6.40 mm 1/4 “ |
3/8 | 18.0 | 28.00 | 1.100 “ | 19 | 0.750 “ | 450 bar 6526 psi |
| MNPT0408 | -4 | 6.40 mm 1/4 “ |
1/2 | 14.0 | 34.00 | 1.340 “ | 22 | 0.870 “ | 350 bar 5076 psi |
| MNPT0504 | -5 | 7.90 mm 5/16 “ |
1/4 | 18.0 | 27.00 | 1.060 “ | 15 | 0.590 “ | 350 bar 5076 psi |
| MNPT0506 | -5 | 7.90 mm 5/16 “ |
3/8 | 18.0 | 28.00 | 1.100 “ | 19 | 0.750 “ | 350 bar 5076 psi |
| MNPT0508 | -5 | 7.90 mm 5/16 “ |
1/2 | 14.0 | 28.00 | 1.100 “ | 22 | 0.870 “ | 415 bar 6019 psi |
| MNPT0604 | -6 | 9.50 mm 3/8 “ |
1/4 | 18.0 | 28.00 | 1.100 “ | 15 | 0.590 “ | 350 bar 5076 psi |
| MNPT0606 | -6 | 9.50 mm 3/8 “ |
3/8 | 18.0 | 28.00 | 1.100 “ | 19 | 0.750 “ | 450 bar 6526 psi |
| MNPT0608 | -6 | 9.50 mm 3/8 “ |
1/2 | 14.0 | 34.00 | 1.340 “ | 22 | 0.870 “ | 415 bar 6019 psi |
| MNPT0806 | -8 | 12.80 mm 1/2 “ |
3/8 | 18.0 | 28.00 | 1.100 “ | 19 | 0.750 “ | 415 bar 6019 psi |
| MNPT0808 | -8 | 12.80 mm 1/2 “ |
1/2 | 14.0 | 34.50 | 1.360 “ | 22 | 0.870 “ | 415 bar 6019 psi |
| MNPT0812 | -8 | 12.80 mm 1/2 “ |
3/4 | 14.0 | 34.50 | 1.360 “ | 27 | 1.060 “ | 415 bar 6019 psi |
| MNPT1008 | -10 | 16.00 mm 5/8 “ |
1/2 | 14.0 | 34.50 | 1.360 “ | 24 | 0.940 “ | 350 bar 5076 psi |
| MNPT1012 | -10 | 16.00 mm 5/8 “ |
3/4 | 14.0 | 36.50 | 1.440 “ | 27 | 1.060 “ | 350 bar 5076 psi |
| MNPT1212 | -12 | 19.00 mm 3/4 “ |
3/4 | 14.0 | 37.00 | 1.460 “ | 27 | 1.060 “ | 350 bar 5076 psi |
| MNPT1216 | -12 | 19.00 mm 3/4 “ |
1 | 11.5 | 45.00 | 1.770 “ | 36 | 1.420 “ | 280 bar 4061 psi |
| MNPT1612 | -16 | 25.40 mm 1 “ |
3/4 | 14.0 | 38.00 | 1.500 “ | 32 | 1.260 “ | 280 bar 4061 psi |
| MNPT1616 | -16 | 25.40 mm 1 “ |
1 | 11.5 | 46.00 | 1.810 “ | 36 | 1.420 “ | 280 bar 4061 psi |
| MNPT1620 | -16 | 25.40 mm 1 “ |
1 1/4 | 11.5 | 45.50 | 1.790 “ | 46 | 1.810 “ | 210 bar 3046 psi |
| MNPT2020 | -20 | 31.80 mm 1 1/4 “ |
1 1/4 | 11.5 | 46.00 | 1.810 “ | 46 | 1.810 “ | 210 bar 3046 psi |
| MNPT2024 | -20 | 31.80 mm 1 1/4 “ |
1 1/2 | 11.5 | 47.00 | 1.850 “ | 50 | 1.970 “ | 185 bar 2683 psi |
| MNPT2424 | -24 | 38.10 mm 1 1/2 “ |
1 1/2 | 11.5 | 47.30 | 1.860 “ | 50 | 1.970 “ | 185 bar 2683 psi |
| MNPT3232 | -32 | 50.80 mm 2 “ |
2 | 11.5 | 57.00 | 2.240 “ | 65 | 2.560 “ | 165 bar 2393 psi |
