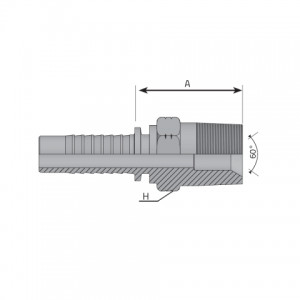

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| MNPT0404LN | -4 | 6.40 mm 1/4 “ |
1/4 | 18.0 | 37.00 | 1.460 “ | 15 | 0.590 “ | 450 bar 6526 psi |
| MNPT0406LN | -4 | 6.40 mm 1/4 “ |
3/8 | 18.0 | 38.00 | 1.500 “ | 19 | 0.750 “ | 450 bar 6526 psi |
| MNPT0604LN | -6 | 9.50 mm 3/8 “ |
1/4 | 18.0 | 38.00 | 1.500 “ | 15 | 0.590 “ | 450 bar 6526 psi |
| MNPT0606LN | -6 | 9.50 mm 3/8 “ |
3/8 | 18.0 | 38.00 | 1.500 “ | 19 | 0.750 “ | 450 bar 6526 psi |
