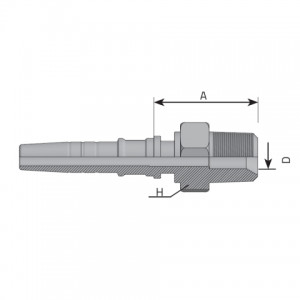

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | D mm | D inch | H mm | H inch |
|---|---|---|---|---|---|---|---|---|---|---|
| KMNPTF0606WB | -6 | 9.50 mm 3/8 “ |
3/8 | 18.0 | 38.00 | 1.500 “ | 8.50 | 0.330 “ | 22 | 0.870 “ |
| KMNPTF0808WB | -8 | 12.80 mm 1/2 “ |
1/2 | 10.0 | 44.60 | 1.760 “ | 10.00 | 0.390 “ | 27 | 1.060 “ |
| KMNPTF1212WB | -12 | 19.00 mm 3/4 “ |
3/4 | 15.0 | 49.40 | 1.940 “ | 15.00 | 0.590 “ | 32 | 1.260 “ |
| KMNPTF1616WB | -16 | 25.40 mm 1 “ |
3/4 | 11.5 | 44.40 | 1.748 “ | 20.50 | 0.807 “ | 36 | 1.417 “ |
