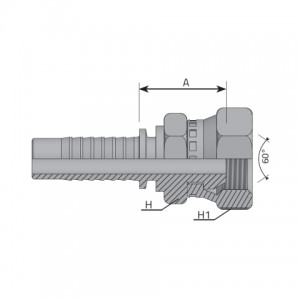

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | H mm | H inch | H1 mm | H1 inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FNPSM0404 | -4 | 6.40 mm 1/4 “ |
1/4 | 18.0 | 24.00 | 0.940 “ | 19 | 0.750 “ | 19 | 0.750 “ | 345 bar 5000 psi |
| FNPSM0606 | -6 | 9.50 mm 3/8 “ |
3/8 | 18.0 | 26.50 | 1.040 “ | 22 | 0.870 “ | 22 | 0.870 “ | 276 bar 4000 psi |
| FNPSM0808 | -8 | 12.80 mm 1/2 “ |
1/2 | 14.0 | 29.00 | 1.140 “ | 22 | 0.870 “ | 27 | 1.060 “ | 241 bar 3500 psi |
| FNPSM1212 | -12 | 19.00 mm 3/4 “ |
3/4 | 14.0 | 37.00 | 1.460 “ | 27 | 1.060 “ | 32 | 1.260 “ | 155 bar 2250 psi |
| FNPSM1616 | -16 | 25.40 mm 1 “ |
1 | 11.5 | 40.50 | 1.590 “ | 32 | 1.260 “ | 38 | 1.500 “ | 138 bar 2000 psi |
| FNPSM2020 | -20 | 31.80 mm 1 1/4 “ |
1 1/4 | 11.5 | 43.00 | 1.690 “ | 41 | 1.610 “ | 50 | 1.970 “ | 112 bar 1625 psi |
