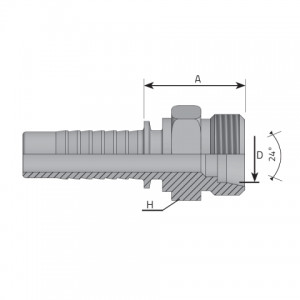

Metric male 24° cone (french type). (ME F)

Brand : Vitillo


Code	D.N.	Hose size	T mm	T Pitch mm	A mm	A inch	D mm	D inch	H mm	H inch
ME0413F	-4	6.40 mm 1/4 “	M 20.0	X 1.50	26.70	1.050 “	13.00	0.510 “	22	0.870 “
ME0513F	-5	7.90 mm 5/16 “	M 20.0	X 1.50	26.70	1.050 “	13.00	0.510 “	22	0.870 “
ME0613F	-6	9.50 mm 3/8 “	M 20.0	X 1.50	26.70	1.050 “	13.00	0.510 “	22	0.870 “
ME0617F	-6	9.50 mm 3/8 “	M 24.0	X 1.50	30.20	1.190 “	17.00	0.670 “	27	1.060 “
ME0817F	-8	12.80 mm 1/2 “	M 24.0	X 1.50	30.70	1.210 “	17.00	0.670 “	27	1.060 “
ME0821F	-8	12.80 mm 1/2 “	M 30.0	X 1.50	31.20	1.230 “	21.00	0.830 “	32	1.260 “
ME1021F	-10	16.00 mm 5/8 “	M 30.0	X 1.50	31.20	1.230 “	21.00	0.830 “	32	1.260 “
ME1221F	-12	19.00 mm 3/4 “	M 30.0	X 1.50	31.70	1.250 “	21.00	0.830 “	32	1.260 “
ME1227F	-12	19.00 mm 3/4 “	M 36.0	X 1.50	31.70	1.250 “	27.00	1.060 “	38	1.500 “
ME1633F	-16	25.40 mm 1 “	M 45.0	X 1.50	37.20	1.460 “	33.00	1.300 “	46	1.810 “
ME2033F	-20	31.80 mm 1 1/4 “	M 45.0	X 1.50	38.20	1.500 “	33.00	1.300 “	46	1.810 “

Receive an offer for Vitillo Metric Male 24 Cone French Type Me F
