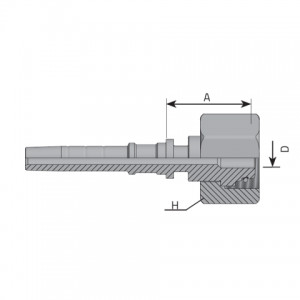

| Code | D.N. | Hose size | T mm | T Pitch mm | A mm | A inch | D mm | D inch | H mm | H inch |
|---|---|---|---|---|---|---|---|---|---|---|
| KFE0622S14WB | -6 | 9.50 mm 3/8 “ |
M 22.0 | X 1.50 | 32.00 | 1.260 “ | 4.80 | 0.190 “ | 27 | 1.060 “ |
| KFE0624S16WB | -6 | 9.50 mm 3/8 “ |
M 24.0 | X 1.50 | 34.20 | 1.350 “ | 6.30 | 0.250 “ | 32 | 1.260 “ |
| KFE0824S16WB | -8 | 12.80 mm 1/2 “ |
M 24.0 | X 1.50 | 35.40 | 1.390 “ | 6.30 | 0.250 “ | 32 | 1.260 “ |
| KFE1236S25WB | -12 | 19.00 mm 3/4 “ |
M 36.0 | X 2.00 | 44.70 | 1.760 “ | 12.00 | 0.470 “ | 46 | 1.810 “ |
| KFE1642S30WB | -16 | 25.40 mm 1 “ |
M 42.0 | X 2.00 | 40.00 | 1.575 “ | 20.50 | 0.807 “ | 50 | 1.968 “ |
