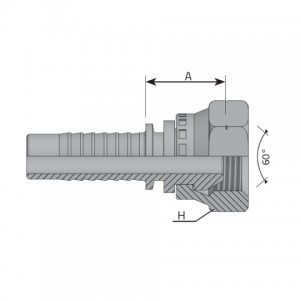

| Code | D.N. | Hose size | T mm | T Pitch mm | A mm | A inch | H mm | H inch | Pressure | |
|---|---|---|---|---|---|---|---|---|---|---|
| FDM0310 | -3 | 4.80 mm 3/16 “ |
M 10.0 | X 1.00 | 18.00 | 0.710 “ | 15 | 0.590 “ | 350 bar 5076 psi |
|
| FDM0312 | -3 | 4.80 mm 3/16 “ |
M 12.0 | X 1.50 | 18.00 | 0.710 “ | 17 | 0.670 “ | 350 bar 5076 psi |
|
| FDM0410 | -4 | 6.40 mm 1/4 “ |
M 10.0 | X 1.00 | 18.00 | 0.710 “ | 15 | 0.590 “ | 350 bar 5076 psi |
|
| FDM0412 | -4 | 6.40 mm 1/4 “ |
M 12.0 | X 1.50 | 18.00 | 0.710 “ | 17 | 0.670 “ | 350 bar 5076 psi |
|
| FDM0414 | -4 | 6.40 mm 1/4 “ |
M 14.0 | X 1.50 | 18.00 | 0.710 “ | 19 | 0.750 “ | 350 bar 5076 psi |
|
| FDM0416 | -4 | 6.40 mm 1/4 “ |
M 16.0 | X 1.50 | 19.00 | 0.750 “ | 22 | 0.870 “ | 350 bar 5076 psi |
|
| FDM0418 | -4 | 6.40 mm 1/4 “ |
M 18.0 | X 1.50 | 19.00 | 0.750 “ | 22 | 0.870 “ | 350 bar 5076 psi |
|
| FDM0514 | -5 | 7.90 mm 5/16 “ |
M 14.0 | X 1.50 | 18.00 | 0.710 “ | 19 | 0.750 “ | 350 bar 5076 psi |
|
| FDM0516 | -5 | 7.90 mm 5/16 “ |
M 16.0 | X 1.50 | 19.00 | 0.750 “ | 22 | 0.870 “ | 350 bar 5076 psi |
|
| FDM0518 | -5 | 7.90 mm 5/16 “ |
M 18.0 | X 1.50 | 19.00 | 0.750 “ | 22 | 0.870 “ | 350 bar 5076 psi |
|
| FDM0614 | -6 | 9.50 mm 3/8 “ |
M 14.0 | X 1.50 | 19.00 | 0.750 “ | 19 | 0.750 “ | 350 bar 5076 psi |
|
| FDM0616 | -6 | 9.50 mm 3/8 “ |
M 16.0 | X 1.50 | 20.00 | 0.790 “ | 22 | 0.870 “ | 350 bar 5076 psi |
|
| FDM0618 | -6 | 9.50 mm 3/8 “ |
M 18.0 | X 1.50 | 20.00 | 0.790 “ | 22 | 0.870 “ | 350 bar 5076 psi |
|
| FDM0620 | -6 | 9.50 mm 3/8 “ |
M 20.0 | X 1.50 | 21.00 | 0.830 “ | 27 | 1.060 “ | 315 bar 4568 psi |
|
| FDM0622 | -6 | 9.50 mm 3/8 “ |
M 22.0 | X 1.50 | 21.00 | 0.830 “ | 27 | 1.060 “ | 315 bar 4568 psi |
|
| FDM0818 | -8 | 12.80 mm 1/2 “ |
M 18.0 | X 1.50 | 20.00 | 0.790 “ | 24 | 0.940 “ | 315 bar 4568 psi |
|
| FDM0820 | -8 | 12.80 mm 1/2 “ |
M 20.0 | X 1.50 | 22.00 | 0.870 “ | 27 | 1.060 “ | 315 bar 4568 psi |
|
| FDM0822 | -8 | 12.80 mm 1/2 “ |
M 22.0 | X 1.50 | 22.00 | 0.870 “ | 27 | 1.060 “ | 315 bar 4568 psi |
|
| FDM0824 | -8 | 12.80 mm 1/2 “ |
M 24.0 | X 1.50 | 23.00 | 0.910 “ | 30 | 1.180 “ | 250 bar 3626 psi |
|
| FDM0826 | -8 | 12.80 mm 1/2 “ |
M 26.0 | X 1.50 | 24.00 | 0.940 “ | 32 | 1.260 “ | 250 bar 3626 psi |
|
| FDM1026 | -10 | 16.00 mm 5/8 “ |
M 26.0 | X 1.50 | 24.00 | 0.940 “ | 32 | 1.260 “ | 250 bar 3626 psi |
|
| FDM1027 | -10 | 16.00 mm 5/8 “ |
M 27.0 | X 1.50 | 24.00 | 0.940 “ | 32 | 1.260 “ | 250 bar 3626 psi |
|
| FDM1226 | -12 | 19.00 mm 3/4 “ |
M 26.0 | X 1.50 | 25.00 | 0.980 “ | 32 | 1.260 “ | 315 bar 4568 psi |
|
| FDM1227 | -12 | 19.00 mm 3/4 “ |
M 27.0 | X 1.50 | 25.00 | 0.980 “ | 32 | 1.260 “ | 250 bar 3626 psi |
|
| FDM1230 | -12 | 19.00 mm 3/4 “ |
M 30.0 | X 1.50 | 26.00 | 1.020 “ | 36 | 1.420 “ | 200 bar 2901 psi |
|
| FDM1233 | -12 | 19.00 mm 3/4 “ |
M 33.0 | X 1.50 | 27.50 | 1.080 “ | 38 | 1.500 “ | 160 bar 2320 psi |
|
| FDM1638 | -16 | 25.40 mm 1 “ |
M 38.0 | X 1.50 | 37.00 | 1.460 “ | 46 | 1.810 “ | 125 bar 1813 psi |
|
| FDM2045 | -20 | 31.80 mm 1 1/4 “ |
M 45.0 | X 1.50 | 32.00 | 1.260 “ | 50 | 1.970 “ | 125 bar 1813 psi |
|
| FDM2452 | -24 | 38.10 mm 1 1/2 “ |
M 52.0 | X 1.50 | 38.50 | 1.520 “ | 60 | 2.360 “ | 125 bar 1813 psi |
