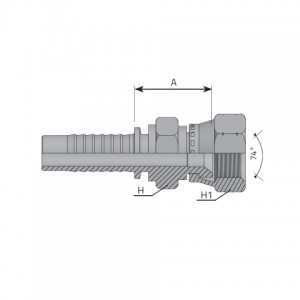

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | H mm | H inch | H1 mm | H1 inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FDJ0404GIR | -4 | 6.40 mm 1/4 “ |
7/16 | 20.0 | 23.50 | 0.930 “ | 14 | 0.550 “ | 15 | 0.590 “ | 350 bar 5076 psi |
| FDJ0405GIR | -4 | 6.40 mm 1/4 “ |
1/2 | 20.0 | 24.00 | 0.940 “ | 14 | 0.550 “ | 17 | 0.670 “ | 350 bar 5076 psi |
| FDJ0406GIR | -4 | 6.40 mm 1/4 “ |
9/16 | 18.0 | 25.70 | 1.010 “ | 17 | 0.670 “ | 19 | 0.750 “ | 250 bar 3626 psi |
| FDJ0505GIR | -5 | 7.90 mm 5/16 “ |
1/2 | 20.0 | – | – | – | – | – | – | – |
| FDJ0506GIR | -5 | 7.90 mm 5/16 “ |
9/16 | 18.0 | 25.20 | 0.990 “ | 17 | 0.670 “ | 19 | 0.750 “ | 250 bar 3626 psi |
| FDJ0605GIR | -6 | 9.50 mm 3/8 “ |
1/2 | 20.0 | 22.50 | 0.890 “ | 17 | 0.670 “ | 17 | 0.670 “ | – |
| FDJ0606GIR | -6 | 9.50 mm 3/8 “ |
9/16 | 18.0 | 25.20 | 0.990 “ | 17 | 0.670 “ | 19 | 0.750 “ | 250 bar 3626 psi |
| FDJ0608GIR | -6 | 9.50 mm 3/8 “ |
3/4 | 16.0 | 27.30 | 1.070 “ | 19 | 0.750 “ | 24 | 0.940 “ | 250 bar 3626 psi |
| FDJ0610GIR | -6 | 9.50 mm 3/8 “ |
7/8 | 14.0 | 28.50 | 1.120 “ | 22 | 0.870 “ | 27 | 1.060 “ | – |
| FDJ0612GIR | -6 | 9.50 mm 3/8 “ |
1 1/16 | 12.0 | 33.50 | 1.320 “ | 27 | 1.060 “ | 32 | 1.260 “ | – |
| FDJ0806GIR | -8 | 12.80 mm 1/2 “ |
9/16 | 18.0 | 23.50 | 0.930 “ | 19 | 0.750 “ | 19 | 0.750 “ | – |
| FDJ0808GIR | -8 | 12.80 mm 1/2 “ |
3/4 | 16.0 | 27.80 | 1.090 “ | 22 | 0.870 “ | 24 | 0.940 “ | 250 bar 3626 psi |
| FDJ0810GIR | -8 | 12.80 mm 1/2 “ |
7/8 | 14.0 | 29.50 | 1.160 “ | 22 | 0.870 “ | 27 | 1.060 “ | 200 bar 2900 psi |
| FDJ0812GIR | -8 | 12.80 mm 1/2 “ |
1 1/16 | 12.0 | 34.00 | 1.340 “ | 27 | 1.060 “ | 32 | 1.260 “ | – |
| FDJ0816GIR | -8 | 12.80 mm 1/2 “ |
1 5/16 | 12.0 | 36.00 | 1.420 “ | 32 | 1.260 “ | 38 | 1.500 “ | – |
| FDJ1010GIR | -10 | 16.00 mm 5/8 “ |
7/8 | 14.0 | 29.50 | 1.160 “ | 24 | 0.940 “ | 27 | 1.060 “ | 200 bar 2900 psi |
| FDJ1012GIR | -10 | 16.00 mm 5/8 “ |
1 1/16 | 12.0 | 34.00 | 1.340 “ | 27 | 1.060 “ | 32 | 1.260 “ | – |
| FDJ1014GIR | -10 | 16.00 mm 5/8 “ |
1 3/16 | 12.0 | 32.50 | 1.280 “ | 27 | 1.060 “ | 32 | 1.260 “ | 200 bar 2900 psi |
| FDJ1210GIR | -12 | 19.00 mm 3/4 “ |
7/8 | 14.0 | 35.30 | 1.390 “ | 27 | 1.060 “ | 27 | 1.060 “ | – |
| FDJ1212GIR | -12 | 19.00 mm 3/4 “ |
1 1/16 | 12.0 | 35.00 | 1.380 “ | 27 | 1.060 “ | 32 | 1.260 “ | 200 bar 2900 psi |
| FDJ1214GIR | -12 | 19.00 mm 3/4 “ |
1 3/16 | 12.0 | 31.00 | 1.220 “ | 30 | 1.180 “ | 36 | 1.420 “ | – |
| FDJ1216GIR | -12 | 19.00 mm 3/4 “ |
1 5/16 | 12.0 | 36.00 | 1.420 “ | 32 | 1.260 “ | 38 | 1.500 “ | – |
| FDJ1612GIR | -16 | 25.40 mm 1 “ |
1 1/16 | 12.0 | 38.00 | 1.500 “ | 32 | 1.260 “ | 32 | 1.260 “ | – |
| FDJ1614GIR | -16 | 25.40 mm 1 “ |
1 3/16 | 12.0 | 36.10 | 1.420 “ | 32 | 1.260 “ | 36 | 1.420 “ | – |
| FDJ1616GIR | -16 | 25.40 mm 1 “ |
1 5/16 | 12.0 | 36.00 | 1.420 “ | 32 | 1.260 “ | 41 | 1.610 “ | 160 bar 2320 psi |
| FDJ1620GIR | -16 | 25.40 mm 1 “ |
1 5/8 | 12.0 | – | – | – | – | – | – | – |
| FDJ2020GIR | -20 | 31.80 mm 1 1/4 “ |
1 5/8 | 12.0 | 49.60 | 1.950 “ | 41 | 1.610 “ | 50 | 1.970 “ | – |
