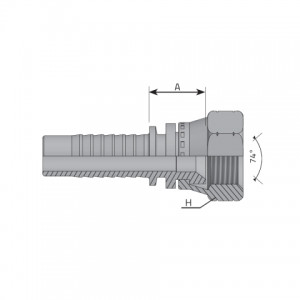

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| FDJ0304 | -3 | 4.80 mm 3/16 “ |
7/16 | 20.0 | 15.00 | 0.590 “ | 15 | 0.590 “ | 350 bar 5076 psi |
| FDJ0305 | -3 | 4.80 mm 3/16 “ |
1/2 | 20.0 | 15.00 | 0.590 “ | 17 | 0.670 “ | 350 bar 5076 psi |
| FDJ0404 | -4 | 6.40 mm 1/4 “ |
7/16 | 20.0 | 15.00 | 0.590 “ | 15 | 0.590 “ | 350 bar 5076 psi |
| FDJ0405 | -4 | 6.40 mm 1/4 “ |
1/2 | 20.0 | 16.00 | 0.630 “ | 17 | 0.670 “ | 350 bar 5076 psi |
| FDJ0406 | -4 | 6.40 mm 1/4 “ |
9/16 | 18.0 | 16.00 | 0.630 “ | 19 | 0.750 “ | 250 bar 3626 psi |
| FDJ0505 | -5 | 7.90 mm 5/16 “ |
1/2 | 20.0 | 16.00 | 0.630 “ | 17 | 0.670 “ | 350 bar 5076 psi |
| FDJ0506 | -5 | 7.90 mm 5/16 “ |
9/16 | 18.0 | 16.00 | 0.630 “ | 19 | 0.750 “ | 250 bar 3626 psi |
| FDJ0507 | -5 | 7.90 mm 5/16 “ |
5/8 | 18.0 | 17.00 | 0.670 “ | 22 | 0.870 “ | – |
| FDJ0508 | -5 | 7.90 mm 5/16 “ |
3/4 | 16.0 | 17.00 | 0.670 “ | 24 | 0.940 “ | 250 bar 3626 psi |
| FDJ0606 | -6 | 9.50 mm 3/8 “ |
9/16 | 18.0 | 16.50 | 0.650 “ | 19 | 0.750 “ | 250 bar 3626 psi |
| FDJ0607 | -6 | 9.50 mm 3/8 “ |
5/8 | 18.0 | 17.00 | 0.670 “ | 22 | 0.870 “ | – |
| FDJ0608 | -6 | 9.50 mm 3/8 “ |
3/4 | 16.0 | 17.00 | 0.670 “ | 24 | 0.940 “ | 250 bar 3626 psi |
| FDJ0610 | -6 | 9.50 mm 3/8 “ |
7/8 | 14.0 | 18.50 | 0.730 “ | 27 | 1.060 “ | 200 bar 2901 psi |
| FDJ0808 | -8 | 12.80 mm 1/2 “ |
3/4 | 16.0 | 18.00 | 0.710 “ | 24 | 0.940 “ | 250 bar 3626 psi |
| FDJ0810 | -8 | 12.80 mm 1/2 “ |
7/8 | 14.0 | 19.00 | 0.750 “ | 27 | 1.060 “ | 200 bar 2901 psi |
| FDJ0812 | -8 | 12.80 mm 1/2 “ |
1 1/16 | 12.0 | 22.00 | 0.870 “ | 32 | 1.260 “ | 200 bar 2901 psi |
| FDJ1010 | -10 | 16.00 mm 5/8 “ |
7/8 | 14.0 | 19.50 | 0.770 “ | 27 | 1.060 “ | 200 bar 2901 psi |
| FDJ1012 | -10 | 16.00 mm 5/8 “ |
1 1/16 | 12.0 | 22.50 | 0.890 “ | 32 | 1.260 “ | 200 bar 2901 psi |
| FDJ1210 | -12 | 19.00 mm 3/4 “ |
7/8 | 14.0 | 20.00 | 0.790 “ | 27 | 1.060 “ | 200 bar 2901 psi |
| FDJ1212 | -12 | 19.00 mm 3/4 “ |
1 1/16 | 12.0 | 23.00 | 0.910 “ | 32 | 1.260 “ | 200 bar 2901 psi |
| FDJ1214 | -12 | 19.00 mm 3/4 “ |
1 3/16 | 12.0 | 23.00 | 0.910 “ | 36 | 1.420 “ | 160 bar 2320 psi |
| FDJ1216 | -12 | 19.00 mm 3/4 “ |
1 5/16 | 12.0 | 23.00 | 0.910 “ | 41 | 1.610 “ | 160 bar 2320 psi |
| FDJ1612 | -16 | 25.40 mm 1 “ |
1 1/16 | 12.0 | 24.00 | 0.940 “ | 32 | 1.260 “ | 200 bar 2901 psi |
| FDJ1616 | -16 | 25.40 mm 1 “ |
1 5/16 | 12.0 | 24.50 | 0.960 “ | 41 | 1.610 “ | 160 bar 2320 psi |
| FDJ1620 | -16 | 25.40 mm 1 “ |
1 5/8 | 12.0 | 28.50 | 1.120 “ | 50 | 1.970 “ | 125 bar 1813 psi |
| FDJ2020 | -20 | 31.80 mm 1 1/4 “ |
1 5/8 | 12.0 | 29.00 | 1.140 “ | 50 | 1.970 “ | 125 bar 1813 psi |
| FDJ2024 | -20 | 31.80 mm 1 1/4 “ |
1 7/8 | 12.0 | 31.00 | 1.220 “ | 55 | 2.170 “ | 100 bar 1450 psi |
| FDJ2424 | -24 | 38.10 mm 1 1/2 “ |
1 7/8 | 12.0 | 31.00 | 1.220 “ | 55 | 2.170 “ | 100 bar 1450 psi |
