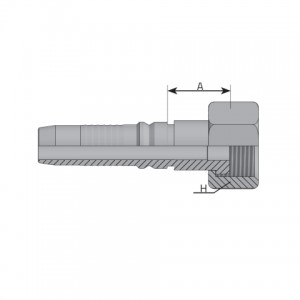

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| KFORFS1014 | -10 | 16.00 mm 5/8 “ |
1 3/16 | 12.0 | – | – | – | – | 420 bar 6091 psi |
| KFORFS1214 | -12 | 19.00 mm 3/4 “ |
1 3/16 | 12.0 | 30.50 | 1.200 “ | 36 | 1.420 “ | 420 bar 6091 psi |
| KFORFS1215 | -12 | 19.00 mm 3/4 “ |
1 7/16 | 12.0 | 31.50 | 1.240 “ | 41 | 1.610 “ | 414 bar 6004 psi |
| KFORFS1615 | -16 | 25.40 mm 1 “ |
1 7/16 | 12.0 | 32.50 | 1.280 “ | 41 | 1.610 “ | 414 bar 6004 psi |
| KFORFS1621 | -16 | 25.40 mm 1 “ |
1 11/16 | – | – | – | – | – | – |
| KFORFS2021 | -20 | 31.80 mm 1 1/4 “ |
1 11/16 | 12.0 | 34.00 | 1.340 “ | 50 | 1.970 “ | 250 bar 3626 psi |
