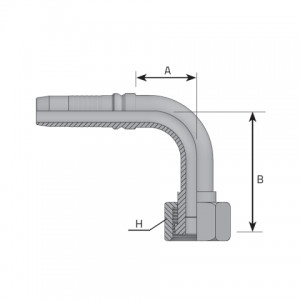

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | B mm | B inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KF90ORFS1214LD | -12 | 19.00 mm 3/4 “ |
1 3/16 | 12.0 | 50.00 | 1.970 “ | 96.00 | 3.780 “ | 36 | 1.420 “ | 420 bar 6091 psi |
| KF90ORFS1615LD | -16 | 25.40 mm 1 “ |
1 7/16 | 12.0 | 62.00 | 2.440 “ | 113.00 | 4.450 “ | 41 | 1.610 “ | 414 bar 6004 psi |
| KF90ORFS2021LD | -20 | 31.80 mm 1 1/4 “ |
1 11/16 | 12.0 | 87.00 | 3.430 “ | 130.00 | 5.120 “ | 50 | 1.970 “ | 250 bar 3626 psi |
