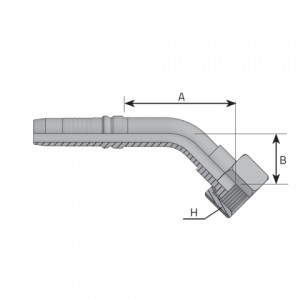

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | B mm | B inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KF45ORFS1014 | -10 | 16.00 mm 5/8 “ |
1 3/16 | 12.0 | – | – | – | – | – | – | – |
| KF45ORFS1214 | -12 | 19.00 mm 3/4 “ |
1 3/16 | 12.0 | 55.50 | 2.190 “ | 23.00 | 0.910 “ | 36 | 1.420 “ | 420 bar 6091 psi |
| KF45ORFS1215 | -12 | 19.00 mm 3/4 “ |
1 7/16 | 12.0 | 60.00 | 2.360 “ | 27.00 | 1.060 “ | 41 | 1.610 “ | 410 bar 5946 psi |
| KF45ORFS1615 | -16 | 25.40 mm 1 “ |
1 7/16 | 12.0 | 78.50 | 3.090 “ | 26.00 | 1.020 “ | 41 | 1.610 “ | 410 bar 5946 psi |
| KF45ORFS1621 | -16 | 25.40 mm 1 “ |
1 11/16 | 12.0 | – | – | – | – | – | – | – |
| KF45ORFS2021 | -20 | 31.80 mm 1 1/4 “ |
1 11/16 | 12.0 | 91.50 | 3.600 “ | 34.00 | 1.340 “ | 50 | 1.970 “ | 250 bar 3626 psi |
