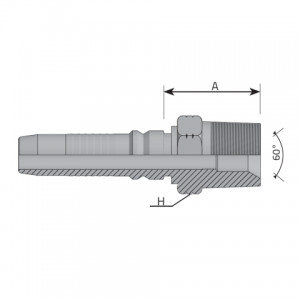

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | B mm | B inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KMNPTF1212 | -12 | 19.00 mm 3/4 “ |
3/4 | 14.0 | 96.50 | 3.800 “ | 34.50 | 1.360 “ | 27 | 1.060 “ | 420 bar 6091 psi |
| KMNPTF1216 | -12 | 19.00 mm 3/4 “ |
1 | 11.5 | 104.50 | 4.110 “ | 42.50 | 1.670 “ | 36 | 1.420 “ | 420 bar 6091 psi |
| KMNPTF1616 | -16 | 25.40 mm 1 “ |
1 | 11.5 | 115.00 | 4.530 “ | 43.00 | 1.690 “ | 36 | 1.420 “ | 420 bar 6091 psi |
| KMNPTF1620 | -16 | 25.40 mm 1 “ |
1 1/4 | 11.5 | 115.00 | 4.530 “ | 43.00 | 1.690 “ | 46 | 1.810 “ | 420 bar 6091 psi |
| KMNPTF2020 | -20 | 31.80 mm 1 1/4 “ |
1 1/4 | 11.5 | 137.50 | 5.410 “ | 44.00 | 1.730 “ | 46 | 1.810 “ | 420 bar 6091 psi |
| KMNPTF2024 | -20 | 31.80 mm 1 1/4 “ |
1 1/2 | 11.5 | 137.50 | 5.410 “ | 44.00 | 1.730 “ | 50 | 1.970 “ | 420 bar 6091 psi |
| KMNPTF2424 | -24 | 38.10 mm 1 1/2 “ |
1 1/2 | 11.5 | 139.00 | 5.470 “ | 45.50 | 1.790 “ | 50 | 1.970 “ | 345 bar 5004 psi |
| KMNPTF3232 | -32 | 50.80 mm 2 “ |
2 | 11.5 | 155.00 | 6.100 “ | 57.00 | 2.240 “ | 65 | 2.560 “ | 345 bar 5004 psi |
