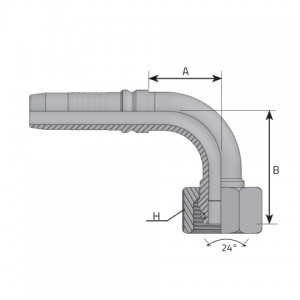

| Code | D.N. | Hose size | T mm | T Pitch mm | A mm | A inch | B mm | B inch | D mm | D inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KF90E1030S20 | -10 | 16.00 mm 5/8 “ |
M 30.0 | X 2.00 | – | – | – | – | 20.00 | 0.790 “ | – | – | 420 bar 6091 psi |
| KF90E1230S20 | -12 | 19.00 mm 3/4 “ |
M 30.0 | X 2.00 | 54.00 | 2.130 “ | 59.00 | 2.320 “ | 20.00 | 0.790 “ | 36 | 1.420 “ | 420 bar 6091 psi |
| KF90E1236S25 | -12 | 19.00 mm 3/4 “ |
M 36.0 | X 2.00 | 54.00 | 2.130 “ | 59.00 | 2.320 “ | 25.00 | 0.980 “ | 46 | 1.810 “ | 420 bar 6091 psi |
| KF90E1636S25 | -16 | 25.40 mm 1 “ |
M 36.0 | X 2.00 | 70.50 | 2.780 “ | 75.00 | 2.950 “ | 25.00 | 0.980 “ | 46 | 1.810 “ | 414 bar 6004 psi |
| KF90E1642S30 | -16 | 25.40 mm 1 “ |
M 42.0 | X 2.00 | 70.50 | 2.780 “ | 75.00 | 2.950 “ | 30.00 | 1.180 “ | 50 | 1.970 “ | 280 bar 4061 psi |
| KF90E2042S30 | -20 | 31.80 mm 1 1/4 “ |
M 42.0 | X 2.00 | 90.50 | 3.560 “ | 86.00 | 3.390 “ | 30.00 | 1.180 “ | 50 | 1.970 “ | 250 bar 3626 psi |
| KF90E2052S38 | -20 | 31.80 mm 1 1/4 “ |
M 52.0 | X 2.00 | 90.50 | 3.560 “ | 86.00 | 3.390 “ | 38.00 | 1.500 “ | 60 | 2.360 “ | 250 bar 3626 psi |
| KF90E2452S38 | -24 | 38.10 mm 1 1/2 “ |
M 52.0 | X 2.00 | 97.50 | 3.840 “ | 94.00 | 3.700 “ | 38.00 | 1.500 “ | 60 | 2.360 “ | 250 bar 3626 psi |
