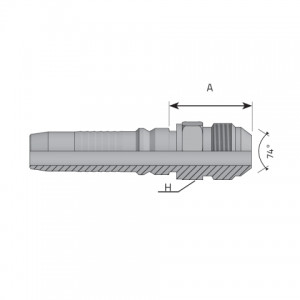

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| KMJ1212 | -12 | 19.00 mm 3/4 “ |
1 1/16 | 12.0 | 38.00 | 1.500 “ | 27 | 1.060 “ | 420 bar 6091 psi |
| KMJ1214 | -12 | 19.00 mm 3/4 “ |
1 3/16 | 12.0 | 39.00 | 1.540 “ | 32 | 1.260 “ | 420 bar 6091 psi |
| KMJ1216 | -12 | 19.00 mm 3/4 “ |
1 5/16 | 12.0 | 39.00 | 1.540 “ | 34 | 1.340 “ | 420 bar 6091 psi |
| KMJ1616 | -16 | 25.40 mm 1 “ |
1 5/16 | 12.0 | 40.00 | 1.570 “ | 34 | 1.340 “ | 414 bar 6004 psi |
| KMJ1620 | -16 | 25.40 mm 1 “ |
1 5/8 | 12.0 | 42.50 | 1.670 “ | 42 | 1.650 “ | 414 bar 6004 psi |
| KMJ2020 | -20 | 31.80 mm 1 1/4 “ |
1 5/8 | 12.0 | 44.00 | 1.730 “ | 42 | 1.650 “ | 414 bar 6004 psi |
| KMJ2024 | -20 | 31.80 mm 1 1/4 “ |
1 7/8 | 12.0 | 51.00 | 2.010 “ | 50 | 1.970 “ | 414 bar 6004 psi |
| KMJ2424 | -24 | 38.10 mm 1 1/2 “ |
1 7/8 | 12.0 | 51.00 | 2.010 “ | 50 | 1.970 “ | 345 bar 5004 psi |
| KMJ3232 | -32 | 50.80 mm 2 “ |
2 1/2 | 12.0 | 61.50 | 2.420 “ | 65 | 2.560 “ | 345 bar 5004 psi |
