Interlock JIC female 45° elbow. (KF45J)

Brand : Vitillo

Vitillo Press Fittings Interlock JIC female 45° elbow. (KF45J)

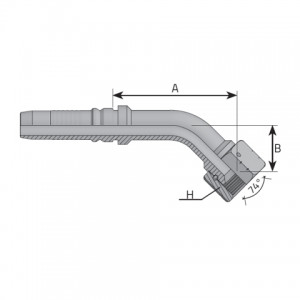

Code D.N. Hose size T inch T/1 inch A mm A inch B mm B inch H mm H inch Pressure
KF45J1212 -12 19.00 mm
3/4 “
1 1/16 12.0 59.50 2.340 “ 29.00 1.140 “ 32 1.260 “ 420 bar
6091 psi
KF45J1214 -12 19.00 mm
3/4 “
1 3/16 12.0 60.50 2.380 “ 29.00 1.140 “ 36 1.420 “ 420 bar
6091 psi
KF45J1216 -12 19.00 mm
3/4 “
1 5/16 12.0 60.50 2.380 “ 29.00 1.140 “ 41 1.610 “ 420 bar
6091 psi
KF45J1616 -16 25.40 mm
1 “
1 5/16 12.0 86.00 3.390 “ 39.50 1.560 “ 41 1.610 “ 414 bar
6004 psi
KF45J1620 -16 25.40 mm
1 “
1 5/8 12.0 87.00 3.430 “ 38.50 1.520 “ 50 1.970 “ 414 bar
6004 psi
KF45J2020 -20 31.80 mm
1 1/4 “
1 5/8 12.0 99.50 3.920 “ 44.00 1.730 “ 50 1.970 “ 414 bar
6004 psi
KF45J2024 -20 31.80 mm
1 1/4 “
1 7/8 12.0 101.50 4.000 “ 45.00 1.770 “ 55 2.170 “ 414 bar
6004 psi
KF45J2424 -24 38.10 mm
1 1/2 “
1 7/8 12.0 116.50 4.590 “ 45.00 1.770 “ 55 2.170 “ 345 bar
5004 psi
KF45J3232 -32 50.80 mm
2 “
2 1/2 12.0 156.00 6.140 “ 65.80 2.590 “ 70 2.760 “ 345 bar
5004 psi
