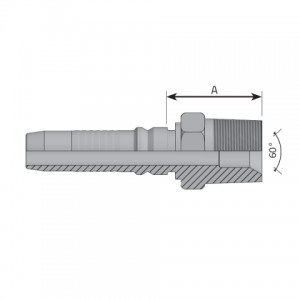

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| KMGK1212 | -12 | 19.00 mm 3/4 “ |
3/4 | 14.0 | 34.70 | 1.370 “ | 27 | 1.060 “ | 420 bar 6091 psi |
| KMGK1616 | -16 | 25.40 mm 1 “ |
1 | 11.0 | 43.50 | 1.710 “ | 36 | 1.420 “ | 420 bar 6091 psi |
| KMGK2020 | -20 | 31.80 mm 1 1/4 “ |
1 1/4 | 11.0 | 42.00 | 1.650 “ | 46 | 1.810 “ | 414 bar 6004 psi |
| KMGK2424 | -24 | 38.10 mm 1 1/2 “ |
1 1/2 | 11.0 | 46.00 | 1.810 “ | 50 | 1.970 “ | 345 bar 5004 psi |
| KMGK3232 | -32 | 50.80 mm 2 “ |
2 | 11.0 | 57.00 | 2.240 “ | 65 | 2.560 “ | 345 bar 5004 psi |
