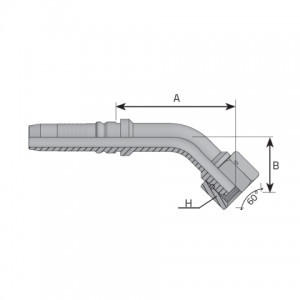

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | B mm | B inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KF45G1212 | -12 | 19.00 mm 3/4 “ |
3/4 | 14.0 | 60.70 | 2.390 “ | 29.00 | 1.140 “ | 32 | 1.260 “ | 420 bar 6091 psi |
| KF45G1616 | -16 | 25.40 mm 1 “ |
1 | 11.0 | 87.50 | 3.440 “ | 41.00 | 1.610 “ | 38 | 1.500 “ | 420 bar 6091 psi |
| KF45G1620 | -16 | 25.40 mm 1 “ |
1 1/4 | 11.0 | 90.50 | 3.560 “ | 44.00 | 1.730 “ | 50 | 1.970 “ | 420 bar 6091 psi |
| KF45G2020 | -20 | 31.80 mm 1 1/4 “ |
1 1/4 | 11.0 | 100.50 | 3.960 “ | 44.00 | 1.730 “ | 50 | 1.970 “ | 420 bar 6091 psi |
| KF45G2424 | -24 | 38.10 mm 1 1/2 “ |
1 1/2 | 11.0 | 116.50 | 4.590 “ | 45.00 | 1.770 “ | 55 | 2.170 “ | 345 bar 5004 psi |
| KF45G3232 | -32 | 50.80 mm 2 “ |
2 | 11.0 | 156.00 | 6.140 “ | 68.00 | 2.680 “ | 70 | 2.760 “ | 345 bar 5004 psi |
