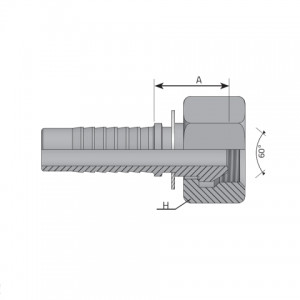

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| FDG0304SF | -3 | 4.80 mm 3/16 “ |
1/4 | 19.0 | 18.00 | 0.710 “ | 19 | 0.750 “ | 415 bar 6019 psi |
| FDG0404SF | -4 | 6.40 mm 1/4 “ |
1/4 | 19.0 | 18.00 | 0.710 “ | 19 | 0.750 “ | 450 bar 6526 psi |
| FDG0406SF | -4 | 6.40 mm 1/4 “ |
3/8 | 19.0 | 19.00 | 0.750 “ | 22 | 0.870 “ | 450 bar 6526 psi |
| FDG0506SF | -5 | 7.90 mm 5/16 “ |
3/8 | 19.0 | 19.00 | 0.750 “ | 22 | 0.870 “ | 350 bar 5076 psi |
| FDG0606SF | -6 | 9.50 mm 3/8 “ |
3/8 | 19.0 | 20.00 | 0.790 “ | 22 | 0.870 “ | 450 bar 6526 psi |
| FDG0608SF | -6 | 9.50 mm 3/8 “ |
1/2 | 14.0 | 21.00 | 0.830 “ | 27 | 1.060 “ | 450 bar 6526 psi |
| FDG0808SF | -8 | 12.80 mm 1/2 “ |
1/2 | 14.0 | 22.00 | 0.870 “ | 27 | 1.060 “ | 415 bar 6019 psi |
