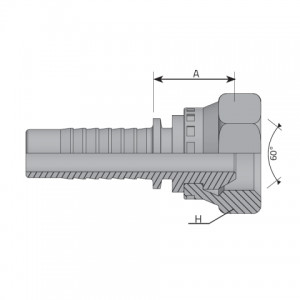

| Code | D.N. | Hose size | T inch | T/1 inch | A mm | A inch | H mm | H inch | Pressure |
|---|---|---|---|---|---|---|---|---|---|
| FDG0302 | -3 | 4.80 mm 3/16 “ |
1/8 | 28.0 | 18.00 | 0.710 “ | 15 | 0.590 “ | 350 bar 5076 psi |
| FDG0304 | -3 | 4.80 mm 3/16 “ |
1/4 | 19.0 | 18.00 | 0.710 “ | 19 | 0.750 “ | 415 bar 6019 psi |
| FDG0402 | -4 | 6.40 mm 1/4 “ |
1/8 | 28.0 | 18.00 | 0.710 “ | 15 | 0.590 “ | 350 bar 5076 psi |
| FDG0404 | -4 | 6.40 mm 1/4 “ |
1/4 | 19.0 | 18.00 | 0.710 “ | 19 | 0.750 “ | 450 bar 6526 psi |
| FDG0406 | -4 | 6.40 mm 1/4 “ |
3/8 | 19.0 | 19.00 | 0.750 “ | 22 | 0.870 “ | 450 bar 6526 psi |
| FDG0408 | -4 | 6.40 mm 1/4 “ |
1/2 | 14.0 | 21.00 | 0.830 “ | 27 | 1.060 “ | 450 bar 6526 psi |
| FDG0504 | -5 | 7.90 mm 5/16 “ |
1/4 | 19.0 | 18.00 | 0.710 “ | 19 | 0.750 “ | 350 bar 5076 psi |
| FDG0506 | -5 | 7.90 mm 5/16 “ |
3/8 | 19.0 | 19.00 | 0.750 “ | 22 | 0.870 “ | 350 bar 5076 psi |
| FDG0508 | -5 | 7.90 mm 5/16 “ |
1/2 | 14.0 | 21.00 | 0.830 “ | 27 | 1.060 “ | 350 bar 5076 psi |
| FDG0604 | -6 | 9.50 mm 3/8 “ |
1/4 | 19.0 | 19.00 | 0.750 “ | 19 | 0.750 “ | 450 bar 6526 psi |
| FDG0606 | -6 | 9.50 mm 3/8 “ |
3/8 | 19.0 | 20.00 | 0.790 “ | 22 | 0.870 “ | 450 bar 6526 psi |
| FDG0608 | -6 | 9.50 mm 3/8 “ |
1/2 | 14.0 | 21.00 | 0.830 “ | 27 | 1.060 “ | 450 bar 6526 psi |
| FDG0806 | -8 | 12.80 mm 1/2 “ |
3/8 | 19.0 | 20.00 | 0.790 “ | 19 | 0.750 “ | 415 bar 6019 psi |
| FDG0808 | -8 | 12.80 mm 1/2 “ |
1/2 | 14.0 | 22.00 | 0.870 “ | 27 | 1.060 “ | 415 bar 6019 psi |
| FDG0810 | -8 | 12.80 mm 1/2 “ |
5/8 | 14.0 | 22.00 | 0.870 “ | 28 | 1.100 “ | 415 bar 6019 psi |
| FDG0812 | -8 | 12.80 mm 1/2 “ |
3/4 | 14.0 | 24.00 | 0.940 “ | 32 | 1.260 “ | 415 bar 6019 psi |
| FDG1008 | -10 | 16.00 mm 5/8 “ |
1/2 | 14.0 | 22.00 | 0.870 “ | 27 | 1.060 “ | 350 bar 5076 psi |
| FDG1010 | -10 | 16.00 mm 5/8 “ |
5/8 | 14.0 | 23.00 | 0.910 “ | 28 | 1.100 “ | 350 bar 5076 psi |
| FDG1012 | -10 | 16.00 mm 5/8 “ |
3/4 | 14.0 | 24.00 | 0.940 “ | 32 | 1.260 “ | 350 bar 5076 psi |
| FDG1208 | -12 | 19.00 mm 3/4 “ |
1/2 | 14.0 | 22.50 | 0.890 “ | 27 | 1.060 “ | 350 bar 5076 psi |
| FDG1210 | -12 | 19.00 mm 3/4 “ |
5/8 | 14.0 | 24.00 | 0.940 “ | 28 | 1.100 “ | 350 bar 5076 psi |
| FDG1212 | -12 | 19.00 mm 3/4 “ |
3/4 | 14.0 | 25.00 | 0.980 “ | 32 | 1.260 “ | 350 bar 5076 psi |
| FDG1216 | -12 | 19.00 mm 3/4 “ |
1 | 11.0 | 26.00 | 1.020 “ | 38 | 1.500 “ | 350 bar 5076 psi |
| FDG1612 | -16 | 25.40 mm 1 “ |
3/4 | 14.0 | 26.00 | 1.020 “ | 32 | 1.260 “ | 280 bar 4061 psi |
| FDG1616 | -16 | 25.40 mm 1 “ |
1 | 11.0 | 27.00 | 1.060 “ | 38 | 1.500 “ | 280 bar 4061 psi |
| FDG1620 | -16 | 25.40 mm 1 “ |
1 1/4 | 11.0 | 30.00 | 1.180 “ | 50 | 1.970 “ | 280 bar 4061 psi |
| FDG2020 | -20 | 31.80 mm 1 1/4 “ |
1 1/4 | 11.0 | 30.00 | 1.180 “ | 50 | 1.970 “ | 210 bar 3046 psi |
| FDG2024 | -20 | 31.80 mm 1 1/4 “ |
1 1/2 | 11.0 | 32.00 | 1.260 “ | 55 | 2.170 “ | 210 bar 3046 psi |
| FDG2424 | -24 | 38.10 mm 1 1/2 “ |
1 1/2 | 11.0 | 32.00 | 1.260 “ | 55 | 2.170 “ | 185 bar 2683 psi |
