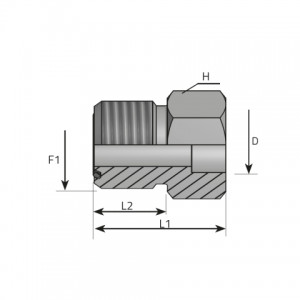

| Code | F1 inch | H mm | L1 mm | L2 mm | D inch | T mm | T inch | Pressure |
|---|---|---|---|---|---|---|---|---|
| AMNSO06T10 | 9/16 | 17 | 22.00 | 10.00 | 3/8 “ | 10 | – | 630 bar 9136 psi |
| AMNSO06T12 | 9/16 | 19 | 22.00 | 10.00 | 1/2 “ | 12 | – | 630 bar 9136 psi |
| AMNSO06T6 | 9/16 | 17 | 22.00 | 10.00 | 1/4 “ | 6 | – | 630 bar 9136 psi |
| AMNSO06T8 | 9/16 | 17 | 22.00 | 10.00 | 5/16 “ | 8 | – | 630 bar 9136 psi |
| AMNSO09T10 | 11/16 | 19 | 23.00 | 11.00 | 3/8 “ | 10 | – | 630 bar 9136 psi |
| AMNSO09T12 | 11/16 | 19 | 23.00 | 11.00 | 1/2 “ | 12 | – | 630 bar 9136 psi |
| AMNSO09T14 | 11/16 | 22 | 23.50 | 11.00 | – | 14 | – | 420 bar 6091 psi |
| AMNSO09T15 | 11/16 | 22 | 23.50 | 11.00 | – | 15 | – | 420 bar 6091 psi |
| AMNSO09T16 | 11/16 | 22 | 23.50 | 11.00 | 5/8 “ | 16 | – | 420 bar 6091 psi |
| AMNSO09T6 | 11/16 | 19 | 23.00 | 11.00 | 1/4 “ | 6 | – | 630 bar 9136 psi |
| AMNSO09T8 | 11/16 | 19 | 23.00 | 11.00 | 5/16 “ | 8 | – | 630 bar 9136 psi |
| AMNSO11T10 | 13/16 | 22 | 24.50 | 13.00 | 3/8 “ | 10 | – | 630 bar 9136 psi |
| AMNSO11T12 | 13/16 | 22 | 24.50 | 13.00 | 1/2 “ | 12 | – | 630 bar 9136 psi |
| AMNSO11T14 | 13/16 | 22 | 25.00 | 13.00 | – | 14 | – | 420 bar 6091 psi |
| AMNSO11T15 | 13/16 | 22 | 25.00 | 13.00 | – | 15 | – | 420 bar 6091 psi |
| AMNSO11T16 | 13/16 | 22 | 25.00 | 13.00 | 5/8 “ | 16 | – | 420 bar 6091 psi |
| AMNSO11T18 | 13/16 | 27 | 28.50 | 13.00 | – | 18 | – | 420 bar 6091 psi |
| AMNSO11T20 | 13/16 | 27 | 28.50 | 13.00 | 3/4 “ | 20 | – | 420 bar 6091 psi |
| AMNSO11T22 | 13/16 | 32 | 28.50 | 13.00 | 7/8 “ | 22 | – | 420 bar 6091 psi |
| AMNSO11T25 | 13/16 | 32 | 30.00 | 13.00 | 1 “ | 25 | 1.000 “ | 420 bar 6091 psi |
| AMNSO11T6 | 13/16 | 22 | 24.50 | 13.00 | 1/4 “ | 6 | – | 630 bar 9136 psi |
| AMNSO11T8 | 13/16 | 22 | 24.50 | 13.00 | 5/16 “ | 8 | – | 630 bar 9136 psi |
| AMNSO13T10 | 1 | 27 | 27.50 | 15.50 | 3/8 “ | 10 | – | 420 bar 6091 psi |
| AMNSO13T12 | 1 | 27 | 27.50 | 15.50 | 1/2 “ | 12 | – | 420 bar 6091 psi |
| AMNSO13T14 | 1 | 27 | 28.00 | 15.50 | – | 14 | – | 420 bar 6091 psi |
| AMNSO13T15 | 1 | 27 | 28.00 | 15.50 | – | 15 | – | 420 bar 6091 psi |
| AMNSO13T16 | 1 | 27 | 28.00 | 15.50 | 5/8 “ | 16 | – | 420 bar 6091 psi |
| AMNSO13T18 | 1 | 27 | 31.50 | 15.50 | – | 18 | – | 420 bar 6091 psi |
| AMNSO13T20 | 1 | 27 | 31.50 | 15.50 | 3/4 “ | 20 | – | 420 bar 6091 psi |
| AMNSO14T12 | 1 3/16 | 32 | 29.50 | 17.00 | 1/2 “ | 12 | – | 420 bar 6091 psi |
| AMNSO14T14 | 1 3/16 | 32 | 30.00 | 17.00 | – | 14 | – | 420 bar 6091 psi |
| AMNSO14T15 | 1 3/16 | 32 | 30.00 | 17.00 | – | 15 | – | 420 bar 6091 psi |
| AMNSO14T16 | 1 3/16 | 32 | 30.00 | 17.00 | 5/8 “ | 16 | – | 420 bar 6091 psi |
| AMNSO14T18 | 1 3/16 | 32 | 33.50 | 17.00 | – | 18 | – | 420 bar 6091 psi |
| AMNSO14T20 | 1 3/16 | 32 | 33.50 | 17.00 | 3/4 “ | 20 | – | 420 bar 6091 psi |
| AMNSO14T22 | 1 3/16 | 32 | 33.50 | 17.00 | 7/8 “ | 22 | – | 420 bar 6091 psi |
| AMNSO14T25 | 1 3/16 | 32 | 35.00 | 17.00 | 1 “ | 25 | 1.000 “ | 420 bar 6091 psi |
| AMNSO15T12 | 1 7/16 | 41 | 33.00 | 17.50 | 1/2 “ | 12 | – | 420 bar 6091 psi |
| AMNSO15T14 | 1 7/16 | 41 | 33.50 | 17.50 | – | 14 | – | 420 bar 6091 psi |
| AMNSO15T15 | 1 7/16 | 41 | 33.50 | 17.50 | – | 15 | – | 420 bar 6091 psi |
| AMNSO15T16 | 1 7/16 | 41 | 33.50 | 17.50 | 5/8 “ | 16 | – | 420 bar 6091 psi |
| AMNSO15T18 | 1 7/16 | 41 | 37.00 | 17.50 | – | 18 | – | 420 bar 6091 psi |
| AMNSO15T20 | 1 7/16 | 41 | 37.00 | 17.50 | 3/4 “ | 20 | – | 420 bar 6091 psi |
| AMNSO15T22 | 1 7/16 | 41 | 37.00 | 17.50 | 7/8 “ | 22 | – | 420 bar 6091 psi |
| AMNSO15T25 | 1 7/16 | 41 | 38.50 | 17.50 | 1 “ | 25 | 1.000 “ | 420 bar 6091 psi |
| AMNSO15T28 | 1 7/16 | 41 | 38.50 | 17.50 | – | 28 | – | 280 bar 4060 psi |
| AMNSO15T30 | 1 7/16 | 41 | 38.50 | 17.50 | 1 1/4 “ | 30 | – | 280 bar 4060 psi |
| AMNSO15T32 | 1 7/16 | 41 | 38.50 | 17.50 | – | 32 | – | 280 bar 4060 psi |
| AMNSO21T18 | 1 11/16 | 46 | 37.00 | 17.50 | – | 18 | – | 280 bar 4060 psi |
| AMNSO21T20 | 1 11/16 | 46 | 37.00 | 17.50 | 3/4 “ | 20 | – | 280 bar 4060 psi |
| AMNSO21T22 | 1 11/16 | 46 | 37.00 | 17.50 | 7/8 “ | 22 | – | 280 bar 4060 psi |
| AMNSO21T25 | 1 11/16 | 46 | 38.50 | 17.50 | 1 “ | 25 | 1.000 “ | 280 bar 4060 psi |
| AMNSO21T28 | 1 11/16 | 46 | 38.50 | 17.50 | – | 28 | – | 280 bar 4060 psi |
| AMNSO21T30 | 1 11/16 | 46 | 38.50 | 17.50 | 1 1/4 “ | 30 | – | 280 bar 4060 psi |
| AMNSO21T32 | 1 11/16 | 46 | 38.50 | 17.50 | – | 32 | – | 280 bar 4060 psi |
| AMNSO21T35 | 1 11/16 | 50 | 38.50 | 17.50 | – | 35 | – | 280 bar 4060 psi |
| AMNSO21T38 | 1 11/16 | 50 | 38.50 | 17.50 | 1 1/2 “ | 38 | – | 280 bar 4060 psi |
| AMNSO32T25 | 2 | 55 | 38.50 | 17.50 | 1 “ | 25 | 1.000 “ | 280 bar 4060 psi |
| AMNSO32T28 | 2 | 55 | 38.50 | 17.50 | – | 28 | – | 280 bar 4060 psi |
| AMNSO32T30 | 2 | 55 | 38.50 | 17.50 | 1 1/4 “ | 30 | – | 280 bar 4060 psi |
| AMNSO32T32 | 2 | 55 | 38.50 | 17.50 | – | 32 | – | 280 bar 4060 psi |
| AMNSO32T35 | 2 | 55 | 38.50 | 17.50 | – | 35 | – | 280 bar 4060 psi |
| AMNSO32T38 | 2 | 55 | 38.50 | 17.50 | 1 1/2 “ | 38 | – | 280 bar 4060 psi |
