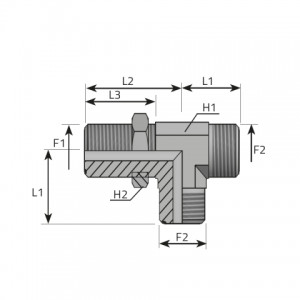

| Code | F1 inch | F2 inch | H1 mm | H2 mm | L1 mm | L2 mm | L3 mm | Pressure |
|---|---|---|---|---|---|---|---|---|
| TPPMO0606B | 9/16 | 9/16 | 14 | 22 | 21.50 | 47.00 | 31.50 | 630 bar 9136 psi |
| TPPMO0909B | 11/16 | 11/16 | 19 | 27 | 25.00 | 52.00 | 34.00 | 630 bar 9136 psi |
| TPPMO1111B | 13/16 | 13/16 | 22 | 30 | 28.00 | 55.50 | 36.50 | 630 bar 9136 psi |
| TPPMO1313B | 1 | 1 | 27 | 36 | 33.50 | 63.00 | 40.50 | 420 bar 6091 psi |
| TPPMO1414B | 1 3/16 | 1 3/16 | 30 | 41 | 37.50 | 67.00 | 41.50 | 420 bar 6091 psi |
| TPPMO1515B | 1 7/16 | 1 7/16 | 36 | 46 | 41.50 | 71.00 | 42.00 | 420 bar 6091 psi |
| TPPMO2121B | 1 11/16 | 1 11/16 | 41 | 50 | 44.50 | 75.50 | 42.00 | 280 bar 4060 psi |
| TPPMO3232B | 2 | 2 | 48 | 60 | 49.00 | 79.50 | 42.00 | 280 bar 4060 psi |
