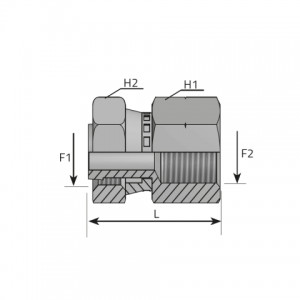

| Code | F1 inch | F2 mm | F2 Pitch mm | H1 mm | H2 mm | L mm | Pressure |
|---|---|---|---|---|---|---|---|
| AFGO06FFM10 | 9/16 | M 10.0 | X 1.00 | 19 | 17 | 39.00 | 630 bar 9136 psi |
| AFGO09FFM10 | 11/16 | M 10.0 | X 1.00 | 19 | 22 | 41.00 | 630 bar 9136 psi |
| AFGO11FFM10 | 13/16 | M 10.0 | X 1.00 | 19 | 24 | 43.00 | 630 bar 9136 psi |
| AFGO13FFM10 | 1 | M 10.0 | X 1.00 | 24 | 30 | 40.00 | 420 bar 6091 psi |
| AFGO14FFM10 | 1 3/16 | M 10.0 | X 1.00 | – | 36 | – | 420 bar 6091 psi |
| AFGO15FFM10 | 1 7/16 | M 10.0 | X 1.00 | – | 41 | – | 420 bar 6091 psi |
| AFGO21FFM10 | 1 11/16 | M 10.0 | X 1.00 | – | 50 | – | 280 bar 4060 psi |
| AFGO32FFM10 | 2 | M 10.0 | X 1.00 | – | 60 | – | 280 bar 4060 psi |
