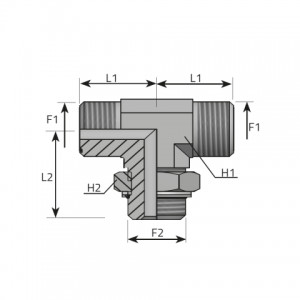

Branch Tee male ORFS – adjustable male BSPP with O-ring. (TMO..MOG.P)

Brand : Vitillo


Code	F1 inch	F2 inch	H1 mm	H2 mm	L1 mm	L2 mm	Pressure
TMO06MOG02P	9/16	1/8	14	14	21.50	30.00	350 bar 5076 psi
TMO06MOG04P	9/16	1/4	14	19	21.50	35.00	315 bar 4568 psi
TMO06MOG06P	9/16	3/8	19	22	23.50	38.00	250 bar 3625 psi
TMO09MOG04P	11/16	1/4	19	19	25.00	37.00	315 bar 4568 psi
TMO09MOG06P	11/16	3/8	19	22	25.00	38.00	250 bar 3625 psi
TMO09MOG08P	11/16	1/2	22	27	28.00	48.00	250 bar 3625 psi
TMO11MOG04P	13/16	1/4	22	19	28.00	37.00	315 bar 4568 psi
TMO11MOG06P	13/16	3/8	22	22	28.00	38.00	250 bar 3625 psi
TMO11MOG08P	13/16	1/2	22	27	30.00	48.00	250 bar 3625 psi
TMO11MOG12P	13/16	3/4	27	36	31.50	51.50	250 bar 3625 psi
TMO13MOG04P	1	1/4	27	19	33.50	42.50	315 bar 4568 psi
TMO13MOG06P	1	3/8	27	22	33.50	42.50	250 bar 3625 psi
TMO13MOG08P	1	1/2	27	27	33.50	48.00	250 bar 3625 psi
TMO13MOG12P	1	3/4	27	36	33.50	51.50	250 bar 3625 psi
TMO13MOG16P	1	1	33	41	37.00	58.50	200 bar 2900 psi
TMO14MOG04P	1 3/16	1/4	30	19	37.50	43.50	315 bar 4568 psi
TMO14MOG08P	1 3/16	1/2	30	27	37.50	49.00	250 bar 3625 psi
TMO14MOG12P	1 3/16	3/4	30	36	37.50	51.50	250 bar 3625 psi
TMO14MOG16P	1 3/16	1	33	41	42.00	54.00	200 bar 2900 psi
TMO15MOG04P	1 7/16	1/4	36	19	41.50	52.00	315 bar 4568 psi
TMO15MOG12P	1 7/16	3/4	36	36	41.50	57.50	250 bar 3625 psi
TMO15MOG16P	1 7/16	1	36	41	41.50	58.50	200 bar 2900 psi
TMO15MOG20P	1 7/16	1 1/4	41	50	44.50	60.50	200 bar 2900 psi
TMO21MOG16P	1 11/16	1	41	41	44.50	60.50	200 bar 2900 psi
TMO21MOG20P	1 11/16	1 1/4	41	50	44.50	60.50	200 bar 2900 psi
TMO21MOG24P	1 11/16	1 1/2	48	55	48.50	64.00	160 bar 2320 psi
TMO32MOG24P	2	1 1/2	48	55	49.00	64.00	160 bar 2320 psi
