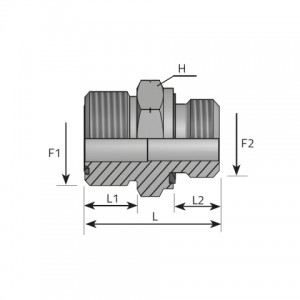

| Code | F1 inch | F2 mm | F2 Pitch mm | H mm | L mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|---|
| AMO06MM10R | 9/16 | M 10.0 | X 1.00 | 17 | 25.50 | 10.00 | 8.00 | 350 bar 5076 psi |
| AMO06MM12R | 9/16 | M 12.0 | X 1.50 | 17 | 30.00 | 10.00 | 12.00 | 630 bar 9136 psi |
| AMO06MM14R | 9/16 | M 14.0 | X 1.50 | 19 | 31.00 | 10.00 | 12.00 | 630 bar 9136 psi |
| AMO09MM12R | 11/16 | M 12.0 | X 1.50 | 19 | 32.00 | 11.00 | 12.00 | 630 bar 9136 psi |
| AMO09MM14R | 11/16 | M 14.0 | X 1.50 | 19 | 32.00 | 11.00 | 12.00 | 630 bar 9136 psi |
| AMO09MM16R | 11/16 | M 16.0 | X 1.50 | 22 | 34.00 | 11.00 | 12.00 | 630 bar 9136 psi |
| AMO09MM18R | 11/16 | M 18.0 | X 1.50 | 24 | 32.50 | 11.00 | 12.00 | 630 bar 9136 psi |
| AMO11MM14R | 13/16 | M 14.0 | X 1.50 | 22 | 35.00 | 13.00 | 12.00 | 630 bar 9136 psi |
| AMO11MM16R | 13/16 | M 16.0 | X 1.50 | 22 | 34.50 | 13.00 | 12.00 | 630 bar 9136 psi |
| AMO11MM18R | 13/16 | M 18.0 | X 1.50 | 24 | 34.50 | 13.00 | 12.00 | 630 bar 9136 psi |
| AMO11MM22R | 13/16 | M 22.0 | X 1.50 | 27 | 38.50 | 13.00 | 14.00 | 630 bar 9136 psi |
| AMO13MM18R | 1 | M 18.0 | X 1.50 | 27 | 38.50 | 15.50 | 12.00 | 420 bar 6091 psi |
| AMO13MM22R | 1 | M 22.0 | X 1.50 | 27 | 41.00 | 15.50 | 14.00 | 420 bar 6091 psi |
| AMO13MM27R | 1 | M 27.0 | X 2.00 | 32 | 44.50 | 15.50 | 16.00 | 420 bar 6091 psi |
| AMO14MM22R | 1 3/16 | M 22.0 | X 1.50 | 32 | 44.00 | 17.00 | 14.00 | 420 bar 6091 psi |
| AMO14MM27R | 1 3/16 | M 27.0 | X 2.00 | 32 | 46.00 | 17.00 | 16.00 | 420 bar 6091 psi |
| AMO14MM33R | 1 3/16 | M 33.0 | X 2.00 | 41 | 49.50 | 17.00 | 18.00 | 420 bar 6091 psi |
| AMO15MM27R | 1 7/16 | M 27.0 | X 2.00 | 41 | 48.00 | 17.50 | 16.00 | 420 bar 6091 psi |
| AMO15MM33R | 1 7/16 | M 33.0 | X 2.00 | 41 | 50.00 | 17.50 | 18.00 | 420 bar 6091 psi |
| AMO15MM42R | 1 7/16 | M 42.0 | X 2.00 | 50 | 54.00 | 17.50 | 20.00 | 420 bar 6091 psi |
| AMO21MM33R | 1 11/16 | M 33.0 | X 2.00 | 46 | 52.00 | 17.50 | 18.00 | 280 bar 4060 psi |
| AMO21MM42R | 1 11/16 | M 42.0 | X 2.00 | 50 | 54.00 | 17.50 | 20.00 | 280 bar 4060 psi |
| AMO21MM48R | 1 11/16 | M 48.0 | X 2.00 | 55 | 57.50 | 17.50 | 22.00 | 280 bar 4060 psi |
| AMO32MM48R | 2 | M 48.0 | X 1.50 | 55 | 57.50 | 17.50 | 22.00 | 280 bar 4060 psi |
