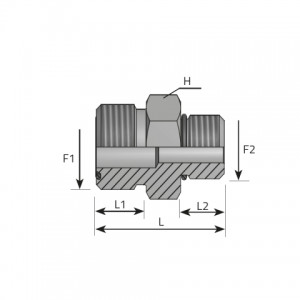

| Code | F1 inch | F2 inch | H mm | L mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|
| AMO06MU04 | 9/16 | 7/16 | 17 | 29.00 | 10.00 | 11.00 | 630 bar 9136 psi |
| AMO06MU05 | 9/16 | 1/2 | 17 | 29.00 | 10.00 | 11.00 | 630 bar 9136 psi |
| AMO06MU06 | 9/16 | 9/16 | 19 | 31.00 | 10.00 | 12.00 | 630 bar 9136 psi |
| AMO06MU08 | 9/16 | 3/4 | 22 | 33.50 | 10.00 | 14.00 | 630 bar 9136 psi |
| AMO09MU04 | 11/16 | 7/16 | 19 | 31.00 | 11.00 | 11.00 | 630 bar 9136 psi |
| AMO09MU05 | 11/16 | 1/2 | 19 | 31.00 | 11.00 | 11.00 | 630 bar 9136 psi |
| AMO09MU06 | 11/16 | 9/16 | 19 | 32.00 | 11.00 | 12.00 | 630 bar 9136 psi |
| AMO09MU08 | 11/16 | 3/4 | 22 | 34.50 | 11.00 | 14.00 | 630 bar 9136 psi |
| AMO09MU10 | 11/16 | 7/8 | 27 | 38.50 | 11.00 | 16.00 | 630 bar 9136 psi |
| AMO09MU12 | 11/16 | 1 1/16 | 32 | 42.50 | 11.00 | 18.50 | 420 bar 6091 psi |
| AMO11MU06 | 13/16 | 9/16 | 22 | 34.50 | 13.00 | 12.00 | 630 bar 9136 psi |
| AMO11MU08 | 13/16 | 3/4 | 22 | 36.50 | 13.00 | 14.00 | 630 bar 9136 psi |
| AMO11MU10 | 13/16 | 7/8 | 27 | 40.50 | 13.00 | 16.00 | 630 bar 9136 psi |
| AMO11MU12 | 13/16 | 1 1/16 | 32 | 44.50 | 13.00 | 18.50 | 420 bar 6091 psi |
| AMO11MU16 | 13/16 | 1 5/16 | 41 | 46.00 | 13.00 | 18.50 | 420 bar 6091 psi |
| AMO13MU08 | 1 | 3/4 | 27 | 41.00 | 15.50 | 14.00 | 420 bar 6091 psi |
| AMO13MU10 | 1 | 7/8 | 27 | 43.00 | 15.50 | 16.00 | 420 bar 6091 psi |
| AMO13MU12 | 1 | 1 1/16 | 32 | 47.00 | 15.50 | 18.50 | 420 bar 6091 psi |
| AMO14MU08 | 1 3/16 | 3/4 | 32 | 44.00 | 17.00 | 14.00 | 420 bar 6091 psi |
| AMO14MU10 | 1 3/16 | 7/8 | 32 | 46.00 | 17.00 | 16.00 | 420 bar 6091 psi |
| AMO14MU12 | 1 3/16 | 1 1/16 | 32 | 48.50 | 17.00 | 18.50 | 420 bar 6091 psi |
| AMO14MU16 | 1 3/16 | 1 5/16 | 41 | 50.00 | 17.00 | 18.50 | 420 bar 6091 psi |
| AMO15MU12 | 1 7/16 | 1 1/16 | 41 | 50.50 | 17.50 | 18.50 | 420 bar 6091 psi |
| AMO15MU16 | 1 7/16 | 1 5/16 | 41 | 50.50 | 17.50 | 18.50 | 420 bar 6091 psi |
| AMO15MU20 | 1 7/16 | 1 5/8 | 46 | 48.50 | 17.50 | 15.00 | 280 bar 4060 psi |
| AMO21MU16 | 1 11/16 | 1 5/16 | 46 | 52.00 | 17.50 | 18.50 | 280 bar 4060 psi |
| AMO21MU20 | 1 11/16 | 1 5/8 | 46 | 52.00 | 17.50 | 18.50 | 280 bar 4060 psi |
| AMO21MU24 | 1 11/16 | 1 7/8 | 55 | 54.00 | 17.50 | 18.50 | 280 bar 4060 psi |
| AMO32MU20 | 2 | 1 5/8 | 55 | 50.50 | 17.50 | 15.00 | 280 bar 4060 psi |
| AMO32MU24 | 2 | 1 7/8 | 55 | 54.00 | 17.50 | 18.50 | 280 bar 4060 psi |
