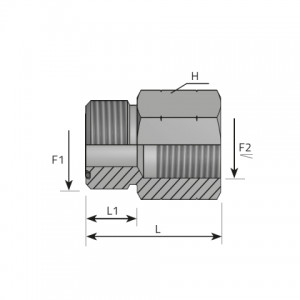

| Code | F1 inch | F2 inch | H mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|
| AMO06FFN04 | 9/16 | 1/4 | 19 | 10.00 | 31.50 | 630 bar 9136 psi |
| AMO09FFN04 | 11/16 | 1/4 | 19 | 11.00 | 32.50 | 630 bar 9136 psi |
| AMO11FFN04 | 13/16 | 1/4 | 22 | 13.00 | 34.50 | 630 bar 9136 psi |
| AMO11FFN06 | 13/16 | 3/8 | 24 | 13.00 | 36.00 | 630 bar 9136 psi |
| AMO13FFN08 | 1 | 1/2 | 30 | 15.50 | 44.00 | 420 bar 6091 psi |
| AMO14FFN08 | 1 3/16 | 1/2 | 32 | 17.00 | 45.50 | 420 bar 6091 psi |
| AMO14FFN12 | 1 3/16 | 3/4 | 36 | 17.00 | 47.00 | 420 bar 6091 psi |
| AMO15FFN16 | 1 7/16 | 1 | 41 | 17.50 | 54.00 | 420 bar 6091 psi |
| AMO21FFN20 | 1 11/16 | 1 1/4 | 55 | 17.50 | 56.50 | 280 bar 4060 psi |
| AMO32FFN24 | 2 | 1 1/2 | 60 | 17.50 | 56.50 | 280 bar 4060 psi |
