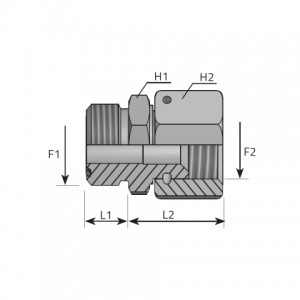

| Code | F1 inch | F2 inch | H1 mm | H2 mm | L1 mm | L2 mm | Pressure | Note |
|---|---|---|---|---|---|---|---|---|
| AMO06FGJ04 | 9/16 | 7/16 | 17 | 17 | 10.00 | 25.00 | 450 bar 6526 psi |
X |
| AMO09FGJ05 | 11/16 | 1/2 | 19 | 17 | 11.00 | 28.00 | 450 bar 6526 psi |
Y |
| AMO09FGJ06 | 11/16 | 9/16 | 19 | 19 | 11.00 | 29.00 | 350 bar 5076 psi |
X |
| AMO11FGJ08 | 13/16 | 3/4 | 22 | 22 | 13.00 | 31.50 | 350 bar 5076 psi |
X |
| AMO13FGJ10 | 1 | 7/8 | 27 | 27 | 15.50 | 37.50 | 350 bar 5076 psi |
X |
| AMO14FGJ12 | 1 3/16 | 1 1/16 | 32 | 32 | 17.00 | 39.00 | 350 bar 5076 psi |
Y |
| AMO15FGJ16 | 1 7/16 | 1 5/16 | 41 | 41 | 17.50 | 44.50 | 290 bar 4205 psi |
Y |
| AMO21FGJ20 | 1 11/16 | 1 5/8 | 46 | 50 | 17.50 | 45.50 | 240 bar 3480 psi |
Y |
| AMO32FGJ24 | 2 | 1 7/8 | 55 | 60 | 17.50 | 55.50 | 240 bar 3480 psi |
Y |
