Adapter male ORFS – female DIN (thrust-wire nut). (AMO..FE..L/S)

Brand : Vitillo

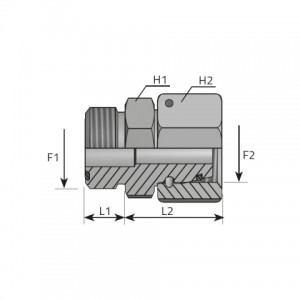

Code	F1 inch	F2 mm	F2 Pitch mm	H1 mm	H2 mm	L1 mm	L2 mm	S inch	Pressure
AMO06FE06L	9/16	M 12.0	X 1.50	17	14	10.00	24.50	6.000 “	315 bar 4568 psi
AMO06FE06S	9/16	M 14.0	X 1.50	17	17	10.00	24.50	6.000 “	630 bar 9136 psi
AMO06FE08L	9/16	M 14.0	X 1.50	17	17	10.00	24.50	8.000 “	315 bar 4568 psi
AMO06FE08S	9/16	M 16.0	X 1.50	17	19	10.00	25.00	8.000 “	630 bar 9136 psi
AMO09FE10L	11/16	M 16.0	X 1.50	19	19	11.00	26.50	10.000 “	315 bar 4568 psi
AMO09FE10S	11/16	M 18.0	X 1.50	19	22	11.00	27.00	10.000 “	630 bar 9136 psi
AMO11FE12L	13/16	M 18.0	X 1.50	22	22	13.00	27.00	12.000 “	315 bar 4568 psi
AMO11FE12S	13/16	M 20.0	X 1.50	22	24	13.00	27.50	12.000 “	630 bar 9136 psi
AMO13FE14S	1	M 22.0	X 1.50	27	27	15.50	32.50	14.000 “	420 bar 6091 psi
AMO13FE15L	1	M 22.0	X 1.50	27	27	15.50	31.00	15.000 “	315 bar 4568 psi
AMO13FE16S	1	M 24.0	X 1.50	27	30	15.50	35.00	16.000 “	400 bar 5801 psi
AMO14FE18L	1 3/16	M 26.0	X 1.50	32	32	17.00	33.50	18.000 “	315 bar 4568 psi
AMO14FE20S	1 3/16	M 30.0	X 2.00	32	36	17.00	39.00	20.000 “	400 bar 5801 psi
AMO15FE22L	1 7/16	M 30.0	X 2.00	41	36	17.50	36.00	22.000 “	160 bar 2320 psi
AMO15FE25S	1 7/16	M 36.0	X 2.00	41	46	17.50	43.00	25.000 “	400 bar 5801 psi
AMO21FE28L	1 11/16	M 36.0	X 2.00	46	41	17.50	39.00	28.000 “	160 bar 2320 psi
AMO21FE30S	1 11/16	M 42.0	X 2.00	46	50	17.50	47.50	30.000 “	280 bar 4060 psi
AMO32FE35L	2	M 45.0	X 2.00	55	50	17.50	45.00	35.000 “	160 bar 2320 psi
AMO32FE38S	2	M 52.0	X 2.00	55	60	17.50	51.00	38.000 “	280 bar 4060 psi
AMO32FE42L	2	M 52.0	X 2.00	55	60	17.50	45.00	42.000 “	160 bar 2320 psi
