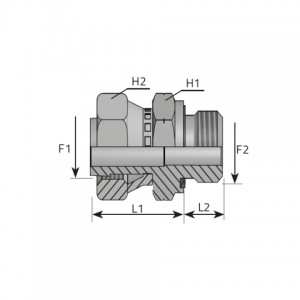

| Code | F1 inch | F2 mm | F2 Pitch mm | H1 mm | H2 mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|---|
| AFGO06MM10R | 9/16 | M 10.0 | X 1.00 | 17 | 17 | 26.50 | 8.00 | 350 bar 5076 psi |
| AFGO06MM12R | 9/16 | M 12.0 | X 1.50 | 17 | 17 | 26.50 | 12.00 | 630 bar 9136 psi |
| AFGO09MM14R | 11/16 | M 14.0 | X 1.50 | 19 | 22 | 28.50 | 12.00 | 630 bar 9136 psi |
| AFGO09MM16R | 11/16 | M 16.0 | X 1.50 | 22 | 22 | 28.50 | 12.00 | 630 bar 9136 psi |
| AFGO11MM16R | 13/16 | M 16.0 | X 1.50 | 22 | 24 | 31.50 | 12.00 | 630 bar 9136 psi |
| AFGO11MM18R | 13/16 | M 18.0 | X 1.50 | 24 | 24 | 35.50 | 12.00 | 630 bar 9136 psi |
| AFGO13MM18R | 1 | M 18.0 | X 1.50 | 27 | 30 | 38.00 | 12.00 | 420 bar 6091 psi |
| AFGO13MM22R | 1 | M 22.0 | X 1.50 | 27 | 30 | 38.00 | 14.00 | 420 bar 6091 psi |
| AFGO14MM22R | 1 3/16 | M 22.0 | X 1.50 | 32 | 36 | 41.50 | 14.00 | 420 bar 6091 psi |
| AFGO14MM27R | 1 3/16 | M 27.0 | X 2.00 | 32 | 36 | 41.50 | 16.00 | 420 bar 6091 psi |
| AFGO15MM27R | 1 7/16 | M 27.0 | X 2.00 | 41 | 41 | 49.00 | 16.00 | 420 bar 6091 psi |
| AFGO15MM33R | 1 7/16 | M 33.0 | X 2.00 | 41 | 41 | 49.00 | 18.00 | 420 bar 6091 psi |
| AFGO21MM42R | 1 11/16 | M 42.0 | X 2.00 | 50 | 50 | 49.00 | 20.00 | 280 bar 4060 psi |
| AFGO32MM48R | 2 | M 48.0 | X 2.00 | 55 | 60 | 49.00 | 22.00 | 280 bar 4060 psi |
