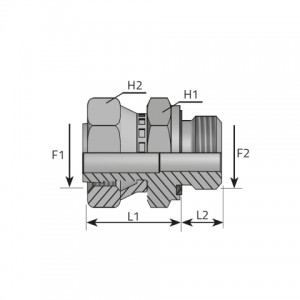

| Code | F1 inch | F2 inch | H1 mm | H2 mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|
| AFGO06MG02R | 9/16 | 1/8 | 17 | 17 | 26.50 | 8.00 | 630 bar 9136 psi |
| AFGO06MG04R | 9/16 | 1/4 | 19 | 17 | 26.50 | 12.00 | 630 bar 9136 psi |
| AFGO09MG04R | 11/16 | 1/4 | 19 | 22 | 28.50 | 12.00 | 630 bar 9136 psi |
| AFGO09MG06R | 11/16 | 3/8 | 22 | 22 | 32.50 | 12.00 | 630 bar 9136 psi |
| AFGO11MG06R | 13/16 | 3/8 | 22 | 24 | 35.50 | 12.00 | 630 bar 9136 psi |
| AFGO11MG08R | 13/16 | 1/2 | 27 | 24 | 34.00 | 14.00 | 630 bar 9136 psi |
| AFGO13MG08R | 1 | 1/2 | 27 | 30 | 38.00 | 14.00 | 420 bar 6091 psi |
| AFGO14MG12R | 1 3/16 | 3/4 | 32 | 36 | 41.50 | 16.00 | 420 bar 6091 psi |
| AFGO14MG20R | 1 3/16 | 1 1/4 | 50 | 36 | 48.00 | 20.00 | 420 bar 6091 psi |
| AFGO15MG16R | 1 7/16 | 1 | 41 | 41 | 49.00 | 18.00 | 420 bar 6091 psi |
| AFGO21MG20R | 1 11/16 | 1 1/4 | 50 | 50 | 49.00 | 20.00 | 280 bar 4060 psi |
| AFGO32MG24R | 2 | 1 1/2 | 55 | 60 | 49.00 | 22.00 | 280 bar 4060 psi |
