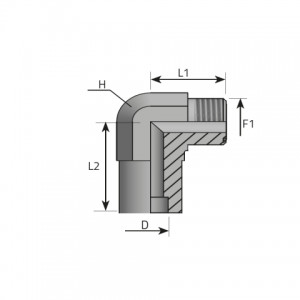

| Code | F1 inch | H mm | L1 mm | L2 mm | D mm | Pressure |
|---|---|---|---|---|---|---|
| LMO06T6 | 9/16 | 14 | 21.50 | 20.00 | 6.00 | 630 bar 9136 psi |
| LMO09T10 | 11/16 | 19 | 25.00 | 23.00 | 10.00 | 630 bar 9136 psi |
| LMO09T8 | 11/16 | 19 | 25.00 | 23.00 | 8.00 | 630 bar 9136 psi |
| LMO11T12 | 13/16 | 22 | 28.00 | 25.00 | 12.00 | 630 bar 9136 psi |
| LMO13T14 | 1 | 27 | 33.50 | 30.00 | 14.00 | 420 bar 6091 psi |
| LMO13T15 | 1 | 27 | 33.50 | 30.00 | 15.00 | 420 bar 6091 psi |
| LMO13T16 | 1 | 27 | 33.50 | 30.00 | 16.00 | 420 bar 6091 psi |
| LMO14T18 | 1 3/16 | 30 | 37.50 | 32.00 | 18.00 | 420 bar 6091 psi |
| LMO14T20 | 1 3/16 | 30 | 37.50 | 32.00 | 20.00 | 420 bar 6091 psi |
| LMO15T22 | 1 7/16 | 36 | 41.50 | 36.00 | 22.00 | 420 bar 6091 psi |
| LMO15T25 | 1 7/16 | 36 | 41.50 | 36.00 | 25.00 | 420 bar 6091 psi |
| LMO21T28 | 1 11/16 | 41 | 44.50 | 42.00 | 28.00 | 280 bar 4060 psi |
| LMO21T30 | 1 11/16 | 41 | 44.50 | 42.00 | 30.00 | 280 bar 4060 psi |
| LMO21T32 | 1 11/16 | 41 | 44.50 | 42.00 | 32.00 | 280 bar 4060 psi |
| LMO32T35 | 2 | 48 | 49.00 | 44.00 | 35.00 | 280 bar 4060 psi |
| LMO32T38 | 2 | 48 | 49.00 | 44.00 | 38.00 | 280 bar 4060 psi |
