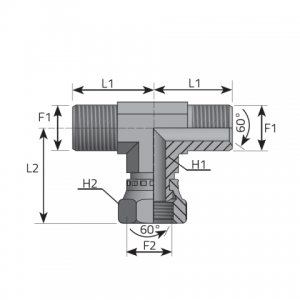

| Code | F1 inch | F2 inch | H1 mm | H2 mm | L1 mm | L2 mm | L3 mm | Pressure |
|---|---|---|---|---|---|---|---|---|
| QPPMO0606 | 9/16 | 9/16 | 14 | 22 | 16.00 | 44.00 | 31.50 | 630 bar 9136 psi |
| QPPMO0909 | 11/16 | 11/16 | 19 | 27 | 19.00 | 48.50 | 34.00 | 630 bar 9136 psi |
| QPPMO1111 | 13/16 | 13/16 | 22 | 30 | 20.50 | 51.00 | 36.50 | 630 bar 9136 psi |
| QPPMO1313 | 1 | 1 | 27 | 36 | 23.50 | 56.50 | 40.50 | 420 bar 6091 psi |
| QPPMO1414 | 1 3/16 | 1 3/16 | 30 | 41 | 26.00 | 60.50 | 41.50 | 420 bar 6091 psi |
| QPPMO1515 | 1 7/16 | 1 7/16 | 36 | 46 | 30.00 | 65.00 | 42.00 | 420 bar 6091 psi |
| QPPMO2121 | 1 11/16 | 1 11/16 | 41 | 50 | 32.00 | 67.00 | 42.00 | 280 bar 4060 psi |
| QPPMO3232 | 2 | 2 | 48 | 60 | 37.00 | 67.00 | 42.00 | 280 bar 4060 psi |
