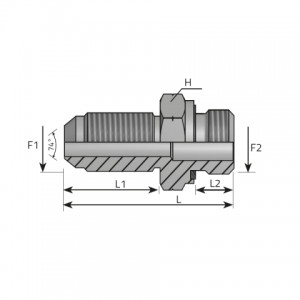

| Code | F1 inch | F2 mm | F2 Pitch mm | H mm | L mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|---|
| AMJ04MM10RL | 7/16 | M 10.0 | X 1.00 | 14 | 50.50 | 35.00 | 7.50 | 350 bar 5075 psi |
| AMJ05MM10RL | 1/2 | M 10.0 | X 1.00 | 14 | 53.00 | 37.00 | 7.50 | 350 bar 5075 psi |
| AMJ05MM12RL | 1/2 | M 12.0 | X 1.50 | 17 | 55.00 | 37.00 | 9.60 | 350 bar 5075 psi |
| AMJ05MM14RL | 1/2 | M 14.0 | X 1.50 | 19 | 55.00 | 37.00 | 9.60 | 350 bar 5075 psi |
| AMJ06MM14RL | 9/16 | M 14.0 | X 1.50 | 19 | 57.00 | 39.00 | 9.60 | 350 bar 5075 psi |
| AMJ06MM16RL | 9/16 | M 16.0 | X 1.50 | 22 | 60.00 | 39.00 | 11.10 | 350 bar 5075 psi |
| AMJ08MM16RL | 3/4 | M 16.0 | X 1.50 | 22 | 69.00 | 48.00 | 11.10 | 350 bar 5075 psi |
| AMJ08MM18RL | 3/4 | M 18.0 | X 1.50 | 24 | 71.00 | 48.00 | 12.60 | 350 bar 5075 psi |
| AMJ10MM18RL | 7/8 | M 18.0 | X 1.50 | 24 | 76.00 | 53.00 | 12.60 | 350 bar 5075 psi |
| AMJ10MM22RL | 7/8 | M 22.0 | X 1.50 | 27 | 78.00 | 53.00 | 13.60 | 315 bar 4568 psi |
| AMJ12MM22RL | 1 1/16 | M 22.0 | X 1.50 | 30 | 88.00 | 63.00 | 13.60 | 315 bar 4568 psi |
| AMJ12MM27RL | 1 1/16 | M 27.0 | X 2.00 | 32 | 92.00 | 63.00 | 16.50 | 315 bar 4568 psi |
| AMJ16MM27RL | 1 5/16 | M 27.0 | X 2.00 | 36 | 101.00 | 72.00 | 16.50 | 280 bar 4060 psi |
| AMJ16MM33RL | 1 5/16 | M 33.0 | X 2.00 | 41 | 102.00 | 72.00 | 16.50 | 280 bar 4060 psi |
| AMJ20MM42RL | 1 5/8 | M 42.0 | X 2.00 | 50 | 121.00 | 88.00 | 17.00 | 240 bar 3480 psi |
| AMJ24MM48RL | 1 7/8 | M 48.0 | X 2.00 | 55 | 134.00 | 98.00 | 19.50 | 240 bar 3480 psi |
