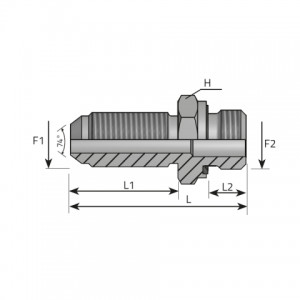

| Code | F1 inch | F2 inch | H mm | L mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|
| AMJ04MG02L | 7/16 | 1/8 | 14 | 50.00 | 35.00 | 6.70 | 345 bar 5003 psi |
| AMJ04MG04L | 7/16 | 1/4 | 19 | 54.00 | 35.00 | 10.20 | 345 bar 5003 psi |
| AMJ05MG02L | 1/2 | 1/8 | 14 | 52.00 | 37.00 | 6.70 | 345 bar 5003 psi |
| AMJ05MG04L | 1/2 | 1/4 | 19 | 56.00 | 37.00 | 10.20 | 345 bar 5003 psi |
| AMJ05MG06L | 1/2 | 3/8 | 22 | 57.00 | 37.00 | 10.20 | 310 bar 4495 psi |
| AMJ06MG04L | 9/16 | 1/4 | 19 | 58.00 | 39.00 | 10.20 | 345 bar 5003 psi |
| AMJ06MG06L | 9/16 | 3/8 | 22 | 59.00 | 39.00 | 10.20 | 310 bar 4495 psi |
| AMJ06MG08L | 9/16 | 1/2 | 27 | 63.00 | 39.00 | 12.20 | 240 bar 3480 psi |
| AMJ08MG04L | 3/4 | 1/4 | 22 | 68.00 | 48.00 | 10.20 | 310 bar 4495 psi |
| AMJ08MG06L | 3/4 | 3/8 | 22 | 68.00 | 48.00 | 10.20 | 310 bar 4495 psi |
| AMJ08MG08L | 3/4 | 1/2 | 27 | 72.00 | 48.00 | 12.20 | 240 bar 3480 psi |
| AMJ10MG06L | 7/8 | 3/8 | 24 | 74.00 | 53.00 | 10.20 | 240 bar 3480 psi |
| AMJ10MG08L | 7/8 | 1/2 | 27 | 77.00 | 53.00 | 12.20 | 240 bar 3480 psi |
| AMJ10MG12L | 7/8 | 3/4 | 36 | 80.00 | 53.00 | 14.20 | 240 bar 3480 psi |
| AMJ12MG08L | 1 1/16 | 1/2 | 30 | 87.00 | 63.00 | 12.20 | 240 bar 3480 psi |
| AMJ12MG12L | 1 1/16 | 3/4 | 36 | 90.00 | 63.00 | 14.20 | 240 bar 3480 psi |
| AMJ12MG16L | 1 1/16 | 1 | 41 | 93.00 | 63.00 | 15.40 | 210 bar 3045 psi |
| AMJ16MG12L | 1 5/16 | 3/4 | 36 | 99.00 | 72.00 | 14.20 | 210 bar 3045 psi |
| AMJ16MG16L | 1 5/16 | 1 | 41 | 102.00 | 72.00 | 15.40 | 210 bar 3045 psi |
| AMJ16MG20L | 1 5/16 | 1 1/4 | 50 | 106.00 | 72.00 | 17.40 | 210 bar 3045 psi |
| AMJ20MG16L | 1 5/8 | 1 | 46 | 119.00 | 88.00 | 15.40 | 170 bar 2465 psi |
| AMJ20MG20L | 1 5/8 | 1 1/4 | 50 | 122.00 | 88.00 | 17.40 | 170 bar 2465 psi |
| AMJ24MG20L | 1 7/8 | 1 1/4 | 50 | 132.00 | 98.00 | 17.40 | 140 bar 2030 psi |
| AMJ24MG24L | 1 7/8 | 1 1/2 | 55 | 135.00 | 98.00 | 19.40 | 140 bar 2030 psi |
