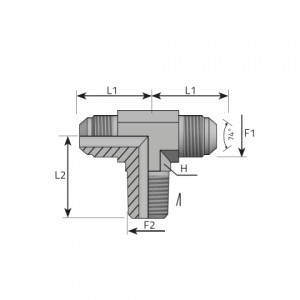

| Code | F1 inch | F2 inch | H mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|
| TMJ04MGK02P | 7/16 | 1/8 | 14 | 23.50 | 20.00 | 345 bar 5003 psi |
| TMJ04MGK04P | 7/16 | 1/4 | 14 | 24.50 | 28.00 | 345 bar 5003 psi |
| TMJ05MGK02P | 1/2 | 1/8 | 14 | 25.00 | 20.00 | 345 bar 5003 psi |
| TMJ05MGK04P | 1/2 | 1/4 | 14 | 25.00 | 28.00 | 345 bar 5003 psi |
| TMJ06MGK04P | 9/16 | 1/4 | 14 | 27.50 | 28.00 | 345 bar 5003 psi |
| TMJ06MGK06P | 9/16 | 3/8 | 19 | 32.00 | 31.00 | 310 bar 4495 psi |
| TMJ08MGK06P | 3/4 | 3/8 | 19 | 32.00 | 31.00 | 310 bar 4495 psi |
| TMJ08MGK08P | 3/4 | 1/2 | 22 | 34.00 | 37.50 | 240 bar 3480 psi |
| TMJ10MGK06P | 7/8 | 3/8 | 22 | 37.00 | 31.50 | 240 bar 3480 psi |
| TMJ10MGK08P | 7/8 | 1/2 | 22 | 37.00 | 37.50 | 240 bar 3480 psi |
| TMJ10MGK12P | 7/8 | 3/4 | 27 | 39.00 | 40.00 | 240 bar 3480 psi |
| TMJ12MGK08P | 1 1/16 | 1/2 | 27 | 42.00 | 37.50 | 240 bar 3480 psi |
| TMJ12MGK12P | 1 1/16 | 3/4 | 33 | 42.00 | 40.00 | 240 bar 3480 psi |
| TMJ16MGK12P | 1 5/16 | 3/4 | 33 | 46.00 | 44.50 | 210 bar 3045 psi |
| TMJ16MGK16P | 1 5/16 | 1 | 33 | 46.00 | 50.00 | 210 bar 3045 psi |
| TMJ20MGK16P | 1 5/8 | 1 | 41 | 57.00 | 51.00 | 170 bar 2465 psi |
| TMJ20MGK20P | 1 5/8 | 1 1/4 | 41 | 57.00 | 60.00 | 170 bar 2465 psi |
