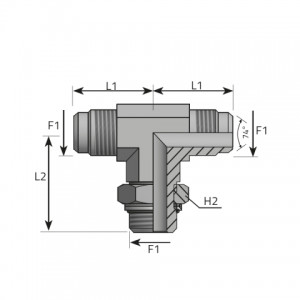

Code | F1 inch | F2 inch | H1 mm | H2 mm | L1 mm | L2 mm | Pressure |
---|---|---|---|---|---|---|---|
TMJ04MOG02P | 7/16 | 1/8 | 14 | 14 | 23.50 | 26.00 | 310 bar 4495 psi |
TMJ04MOG04P | 7/16 | 1/4 | 14 | 19 | 24.00 | 34.00 | 275 bar 3988 psi |
TMJ04MOG06P | 7/16 | 3/8 | 19 | 22 | 29.00 | 37.00 | 275 bar 3988 psi |
TMJ04MOG08P | 7/16 | 1/2 | 22 | 27 | 31.00 | 43.00 | 210 bar 3045 psi |
TMJ05MOG02P | 1/2 | 1/8 | 14 | 14 | 25.00 | 30.00 | 275 bar 3988 psi |
TMJ05MOG04P | 1/2 | 1/4 | 14 | 19 | 25.00 | 34.00 | 275 bar 3988 psi |
TMJ05MOG06P | 1/2 | 3/8 | 19 | 22 | 29.00 | 37.00 | 210 bar 3045 psi |
TMJ06MOG04P | 9/16 | 1/4 | 14 | 19 | 27.50 | 32.00 | 275 bar 3988 psi |
TMJ06MOG06P | 9/16 | 3/8 | 19 | 22 | 29.50 | 37.00 | 210 bar 3045 psi |
TMJ06MOG08P | 9/16 | 1/2 | 22 | 27 | 31.00 | 45.00 | 210 bar 3045 psi |
TMJ08MOG04P | 3/4 | 1/4 | 19 | 19 | 32.00 | 38.00 | 275 bar 3988 psi |
TMJ08MOG06P | 3/4 | 3/8 | 19 | 22 | 32.00 | 37.00 | 275 bar 3988 psi |
TMJ08MOG08P | 3/4 | 1/2 | 22 | 27 | 34.00 | 45.50 | 210 bar 3045 psi |
TMJ08MOG12P | 3/4 | 3/4 | 27 | 36 | 36.00 | 49.00 | 210 bar 3045 psi |
TMJ10MOG06P | 7/8 | 3/8 | 22 | 22 | 36.00 | 37.50 | 210 bar 3045 psi |
TMJ10MOG08P | 7/8 | 1/2 | 22 | 27 | 37.00 | 45.50 | 210 bar 3045 psi |
TMJ10MOG12P | 7/8 | 3/4 | 27 | 36 | 39.00 | 49.00 | 210 bar 3045 psi |
TMJ12MOG08P | 1 1/16 | 1/2 | 27 | 27 | 42.00 | 47.00 | 210 bar 3045 psi |
TMJ12MOG12P | 1 1/16 | 3/4 | 27 | 36 | 42.00 | 50.00 | 210 bar 3045 psi |
TMJ12MOG16P | 1 1/16 | 1 | 33 | 41 | 47.00 | 54.50 | 170 bar 2465 psi |
TMJ16MOG12P | 1 5/16 | 3/4 | 33 | 36 | 47.00 | 54.50 | 170 bar 2465 psi |
TMJ16MOG16P | 1 5/16 | 1 | 33 | 41 | 47.00 | 53.00 | 170 bar 2465 psi |
TMJ16MOG20P | 1 5/16 | 1 1/4 | 41 | 50 | 52.00 | 58.00 | 170 bar 2465 psi |
TMJ20MOG16P | 1 5/8 | 1 | 41 | 41 | 53.00 | 58.00 | 140 bar 2030 psi |
TMJ20MOG20P | 1 5/8 | 1 1/4 | 41 | 50 | 53.00 | 63.00 | 140 bar 2030 psi |
