Adapter swivel female JIC – metric male with 60° cone. (AFGJ..MM)

Brand : Vitillo

Vitillo Jic Fittings Adapter swivel female JIC – metric male with 60° cone. (AFGJ..MM)

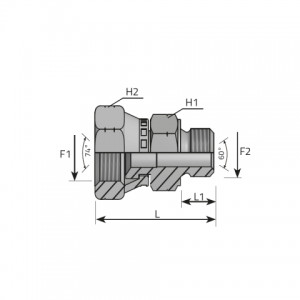

Code F1 inch F2 mm F2 Pitch mm H1 mm H2 mm L mm L1 mm Pressure Note
AFGJ04MM10 7/16 M 10.0 X 1.00 14 15 34.50 9.00 310 bar
4495 psi
AFGJ04MM12 7/16 M 12.0 X 1.50 17 15 36.50 11.00 275 bar
3988 psi
AFGJ05MM10 1/2 M 10.0 X 1.00 14 17 36.50 9.00 275 bar
3988 psi
AFGJ05MM12 1/2 M 12.0 X 1.50 17 17 39.00 11.00 275 bar
3988 psi
AFGJ05MM14 1/2 M 14.0 X 1.50 19 17 40.00 11.00 275 bar
3988 psi
AFGJ06MM14 9/16 M 14.0 X 1.50 19 19 41.00 11.00 275 bar
3988 psi
AFGJ06MM16 9/16 M 16.0 X 1.50 22 19 42.50 12.50 210 bar
3045 psi
AFGJ08MM16 3/4 M 16.0 X 1.50 22 24 44.00 12.50 275 bar
3988 psi
AFGJ08MM18 3/4 M 18.0 X 1.50 24 24 45.50 13.50 275 bar
3988 psi
AFGJ10MM18 7/8 M 18.0 X 1.50 24 27 48.50 13.50 210 bar
3045 psi
AFGJ10MM20 7/8 M 20.0 X 1.50 27 27 51.00 15.00 210 bar
3045 psi
AFGJ10MM22 7/8 M 22.0 X 1.50 27 27 51.00 15.00 210 bar
3045 psi
AFGJ12MM22 1 1/16 M 22.0 X 1.50 27 32 53.50 15.00 210 bar
3045 psi
*
AFGJ12MM27 1 1/16 M 27.0 X 2.00 32 32 57.50 18.50 210 bar
3045 psi
*
AFGJ16MM27 1 5/16 M 27.0 X 2.00 32 41 60.00 18.50 170 bar
2465 psi
*
AFGJ16MM33 1 5/16 M 33.0 X 2.00 41 41 61.00 18.50 170 bar
2465 psi
*
AFGJ20MM42 1 5/8 M 42.0 X 2.00 50 50 66.00 19.00 140 bar
2030 psi
*
AFGJ24MM48 1 7/8 M 48.0 X 2.00 55 55 76.00 22.00 105 bar
1523 psi
*
