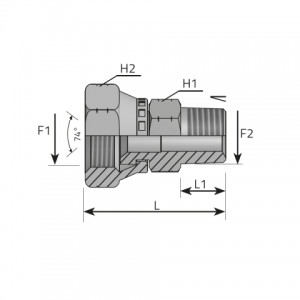

Adapter swivel female JIC – male NPT. (AFGJ..MN)

Brand : Vitillo


Code	F1 inch	F2 inch	H1 mm	H2 mm	L mm	L1 mm	Pressure	Note
AFGJ04MN02	7/16	1/8	12	15	34.50	10.00	310 bar 4495 psi
AFGJ04MN04	7/16	1/4	14	15	39.00	14.50	275 bar 3988 psi
AFGJ05MN02	1/2	1/8	12	17	36.00	10.00	275 bar 3988 psi
AFGJ05MN04	1/2	1/4	14	17	40.50	14.50	275 bar 3988 psi
AFGJ06MN04	9/16	1/4	14	19	41.30	14.50	275 bar 3988 psi
AFGJ06MN06	9/16	3/8	17	19	42.30	14.50	210 bar 3045 psi
AFGJ08MN04	3/4	1/4	19	24	44.60	14.50	275 bar 3988 psi
AFGJ08MN06	3/4	3/8	19	24	44.60	14.50	275 bar 3988 psi
AFGJ08MN08	3/4	1/2	22	24	49.10	19.00	210 bar 3045 psi
AFGJ10MN06	7/8	3/8	22	27	48.60	14.50	210 bar 3045 psi
AFGJ10MN08	7/8	1/2	22	27	53.10	19.00	210 bar 3045 psi
AFGJ10MN12	7/8	3/4	27	27	56.10	19.00	210 bar 3045 psi
AFGJ12MN08	1 1/16	1/2	27	32	56.20	19.00	210 bar 3045 psi	*
AFGJ12MN12	1 1/16	3/4	27	32	56.20	19.00	210 bar 3045 psi	*
AFGJ12MN16	1 1/16	1	36	32	61.80	24.00	170 bar 2465 psi	*
AFGJ16MN12	1 5/16	3/4	32	41	59.90	19.00	170 bar 2465 psi	*
AFGJ16MN16	1 5/16	1	36	41	45.40	24.00	170 bar 2465 psi	*
AFGJ20MN20	1 5/8	1 1/4	46	50	67.80	25.00	140 bar 2030 psi	*
AFGJ24MN20	1 7/8	1 1/4	46	55	76.80	25.00	105 bar 1523 psi	*
AFGJ24MN24	1 7/8	1 1/2	50	55	77.80	26.00	105 bar 1523 psi	*
