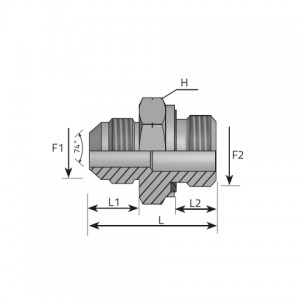

| Code | F1 inch | F2 mm | F2 Pitch mm | H mm | L inch | L2 mm | L2 inch | Pressure |
|---|---|---|---|---|---|---|---|---|
| AMJ04MM10R | 7/16 | M 10.0 | X 1.00 | 14 | 14.000 “ | 9.50 | 29.00 “ | 345 bar 5003 psi |
| AMJ04MM12R | 7/16 | M 12.0 | X 1.50 | 17 | 14.000 “ | 12.00 | 33.00 “ | 345 bar 5003 psi |
| AMJ05MM10R | 1/2 | M 10.0 | X 1.00 | 14 | 14.000 “ | 8.00 | 29.00 “ | 345 bar 5003 psi |
| AMJ05MM12R | 1/2 | M 12.0 | X 1.50 | 17 | 14.000 “ | 14.00 | 33.00 “ | 345 bar 5003 psi |
| AMJ05MM14R | 1/2 | M 14.0 | X 1.50 | 19 | 14.000 “ | 12.00 | 33.00 “ | 310 bar 4495 psi |
| AMJ06MM14R | 9/16 | M 14.0 | X 1.50 | 19 | 14.100 “ | 12.00 | 33.00 “ | 310 bar 4495 psi |
| AMJ06MM16R | 9/16 | M 16.0 | X 1.50 | 22 | 14.100 “ | 12.00 | 33.50 “ | 240 bar 3480 psi |
| AMJ08MM14R | 3/4 | M 14.0 | X 1.50 | 19 | 16.700 “ | 12.00 | 36.00 “ | 310 bar 4495 psi |
| AMJ08MM16R | 3/4 | M 16.0 | X 1.50 | 22 | 16.700 “ | 12.00 | 36.00 “ | 240 bar 3480 psi |
| AMJ08MM18R | 3/4 | M 18.0 | X 1.50 | 24 | 16.700 “ | 12.00 | 37.50 “ | 240 bar 3480 psi |
| AMJ10MM18R | 7/8 | M 18.0 | X 1.50 | 24 | 19.300 “ | 12.00 | 40.00 “ | 240 bar 3480 psi |
| AMJ10MM20R | 7/8 | M 20.0 | X 1.50 | 27 | 19.300 “ | 14.00 | 43.00 “ | 240 bar 3480 psi |
| AMJ10MM22R | 7/8 | M 22.0 | X 1.50 | 27 | 19.300 “ | 14.00 | 43.50 “ | 240 bar 3480 psi |
| AMJ12MM22R | 1 1/16 | M 22.0 | X 1.50 | 30 | 21.900 “ | 14.00 | 46.50 “ | 240 bar 3480 psi |
| AMJ12MM27R | 1 1/16 | M 27.0 | X 2.00 | 32 | 21.900 “ | 16.00 | 48.50 “ | 240 bar 3480 psi |
| AMJ16MM27R | 1 5/16 | M 27.0 | X 2.00 | 36 | 23.100 “ | 16.00 | 50.50 “ | 210 bar 3045 psi |
| AMJ16MM33R | 1 5/16 | M 33.0 | X 2.00 | 41 | 23.100 “ | 18.00 | 52.50 “ | 210 bar 3045 psi |
| AMJ20MM42R | 1 5/8 | M 42.0 | X 2.00 | 50 | 24.300 “ | 20.00 | 58.00 “ | 170 bar 2465 psi |
| AMJ24MM48R | 1 7/8 | M 48.0 | X 2.00 | 55 | 27.500 “ | 22.00 | 63.50 “ | 140 bar 2030 psi |
