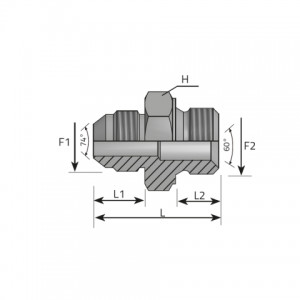

| Code | F1 inch | F2 inch | H mm | L mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|---|
| AMJ04MG02SV | 7/16 | 1/8 | 14 | 29.00 | 14.00 | 8.00 | 345 bar 5003 psi |
| AMJ04MG04SV | 7/16 | 1/4 | 19 | 34.50 | 14.00 | 12.00 | 345 bar 5003 psi |
| AMJ04MG06SV | 7/16 | 3/8 | 22 | 34.50 | 14.00 | 12.00 | 310 bar 4495 psi |
| AMJ04MG08SV | 7/16 | 1/2 | 27 | 38.00 | 14.00 | 14.00 | 240 bar 3480 psi |
| AMJ05MG02SV | 1/2 | 1/8 | 14 | 29.00 | 14.00 | 8.00 | 345 bar 5003 psi |
| AMJ05MG04SV | 1/2 | 1/4 | 19 | 34.50 | 14.00 | 12.00 | 345 bar 5003 psi |
| AMJ05MG06SV | 1/2 | 3/8 | 22 | 34.50 | 14.00 | 12.00 | 310 bar 4495 psi |
| AMJ05MG08SV | 1/2 | 1/2 | 27 | 38.00 | 14.00 | 14.00 | 240 bar 3480 psi |
| AMJ06MG02SV | 9/16 | 1/8 | 17 | 30.50 | 14.00 | 8.00 | 345 bar 5003 psi |
| AMJ06MG04SV | 9/16 | 1/4 | 19 | 34.60 | 14.10 | 12.00 | 345 bar 5003 psi |
| AMJ06MG06SV | 9/16 | 3/8 | 22 | 34.50 | 14.10 | 12.00 | 310 bar 4495 psi |
| AMJ06MG08SV | 9/16 | 1/2 | 27 | 38.00 | 14.10 | 14.00 | 240 bar 3480 psi |
| AMJ08MG04SV | 3/4 | 1/4 | 22 | 37.50 | 17.00 | 12.00 | 310 bar 4495 psi |
| AMJ08MG06SV | 3/4 | 3/8 | 22 | 36.00 | 16.70 | 12.00 | 310 bar 4495 psi |
| AMJ08MG08SV | 3/4 | 1/2 | 27 | 41.00 | 16.70 | 14.00 | 240 bar 3480 psi |
| AMJ08MG12SV | 3/4 | 3/4 | 32 | 45.00 | 17.00 | 16.00 | 240 bar 3480 psi |
| AMJ10MG06SV | 7/8 | 3/8 | 24 | 45.00 | 19.50 | 19.00 | 240 bar 3480 psi |
| AMJ10MG08SV | 7/8 | 1/2 | 27 | 43.50 | 19.50 | 14.00 | 240 bar 3480 psi |
| AMJ10MG12SV | 7/8 | 3/4 | 32 | 47.50 | 19.50 | 16.00 | 240 bar 3480 psi |
| AMJ10MG16SV | 7/8 | 1 | 41 | 49.80 | 19.30 | 18.00 | 210 bar 3045 psi |
| AMJ12MG06SV | 1 1/16 | 3/8 | 30 | 45.00 | 21.90 | 12.00 | 240 bar 3480 psi |
| AMJ12MG08SV | 1 1/16 | 1/2 | 30 | 47.00 | 21.90 | 14.00 | 240 bar 3480 psi |
| AMJ12MG12SV | 1 1/16 | 3/4 | 32 | 49.90 | 21.90 | 16.00 | 210 bar 3045 psi |
| AMJ12MG16SV | 1 1/16 | 1 | 41 | 52.40 | 21.90 | 18.00 | 210 bar 3045 psi |
| AMJ16MG12SV | 1 5/16 | 3/4 | 36 | 51.10 | 23.10 | 16.00 | 210 bar 3045 psi |
| AMJ16MG16SV | 1 5/16 | 1 | 41 | 53.60 | 23.10 | 18.00 | 210 bar 3045 psi |
| AMJ16MG20SV | 1 5/16 | 1 1/4 | 50 | 57.10 | 23.10 | 20.00 | 210 bar 3045 psi |
| AMJ16MG24SV | 1 5/16 | 1 1/2 | 55 | 58.30 | 23.10 | 21.00 | 170 bar 2465 psi |
| AMJ20MG16SV | 1 5/8 | 1 | 46 | 55.30 | 24.30 | 18.00 | 170 bar 2465 psi |
| AMJ20MG20SV | 1 5/8 | 1 1/4 | 50 | 58.30 | 24.30 | 20.00 | 170 bar 2465 psi |
| AMJ20MG24SV | 1 5/8 | 1 1/2 | 55 | 60.30 | 24.30 | 22.00 | 140 bar 2030 psi |
| AMJ24MG16SV | 1 7/8 | 1 | 50 | 59.50 | 27.50 | 18.00 | 140 bar 2030 psi |
| AMJ24MG20SV | 1 7/8 | 1 1/4 | 50 | 61.50 | 27.50 | 20.00 | 140 bar 2030 psi |
| AMJ24MG24SV | 1 7/8 | 1 1/2 | 55 | 65.50 | 27.50 | 22.00 | 140 bar 2030 psi |
