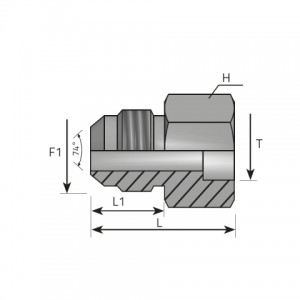

| Code | F1 inch | H mm | L mm | L1 mm | T mm | Pressure |
|---|---|---|---|---|---|---|
| AMNJ04T06 | 7/16 | 12 | 26.00 | 14.00 | 6 | 345 bar 5003 psi |
| AMNJ05T08 | 1/2 | 14 | 26.00 | 14.00 | 8 | 345 bar 5003 psi |
| AMNJ06T10 | 9/16 | 17 | 27.50 | 14.10 | 10 | 345 bar 5003 psi |
| AMNJ08T12 | 3/4 | 22 | 29.00 | 16.70 | 12 | 310 bar 4495 psi |
| AMNJ10T16 | 7/8 | 24 | 31.50 | 19.30 | 16 | 240 bar 3480 psi |
| AMNJ12T20 | 1 1/16 | 30 | 40.00 | 21.90 | 20 | 240 bar 3480 psi |
| AMNJ16T25 | 1 5/16 | 36 | 42.00 | 23.10 | 25 | 210 bar 3045 psi |
| AMNJ20T32 | 1 5/8 | 46 | 45.00 | 24.30 | 32 | 170 bar 2465 psi |
| AMNJ24T38 | 1 7/8 | 50 | 50.00 | 27.50 | 38 | 140 bar 2030 psi |
