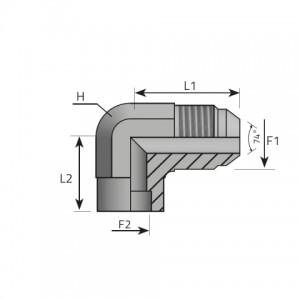

| Code | F1 inch | F2 mm | H mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|
| LMJ04T06 | 7/16 | M 6.0 | 14 | 31.00 | 16.00 | 345 bar 5003 psi |
| LMJ05T10 | 1/2 | M 10.0 | 14 | 27.00 | 16.00 | 345 bar 5003 psi |
| LMJ06T10 | 9/16 | M 10.0 | 14 | 27.50 | 16.00 | 345 bar 5003 psi |
| LMJ06T12 | 9/16 | M 12.0 | 19 | 29.50 | 18.00 | 345 bar 5003 psi |
| LMJ08T12 | 3/4 | M 12.0 | 19 | 32.00 | 18.00 | 310 bar 4495 psi |
| LMJ08T16 | 3/4 | M 16.0 | 22 | 34.00 | 20.00 | 310 bar 4495 psi |
| LMJ10T14 | 7/8 | M 14.0 | 22 | 37.00 | 20.00 | 240 bar 3480 psi |
| LMJ10T16 | 7/8 | M 16.0 | 22 | 37.00 | 20.00 | 240 bar 3480 psi |
| LMJ10T18 | 7/8 | M 18.0 | 27 | 40.00 | 23.00 | 240 bar 3480 psi |
| LMJ10T22 | 7/8 | M 22.0 | 27 | 40.00 | 23.00 | 240 bar 3480 psi |
| LMJ12T18 | 1 1/16 | M 18.0 | 27 | 42.00 | 23.00 | 240 bar 3480 psi |
| LMJ12T20 | 1 1/16 | M 20.0 | 27 | 42.00 | 23.00 | 240 bar 3480 psi |
| LMJ12T25 | 1 1/16 | M 25.0 | 33 | 46.00 | 26.00 | 240 bar 3480 psi |
| LMJ16T25 | 1 5/16 | M 25.0 | 33 | 46.00 | 26.00 | 210 bar 3045 psi |
| LMJ16T32 | 1 5/16 | M 32.0 | 41 | 51.00 | 33.00 | 210 bar 3045 psi |
| LMJ20T30 | 1 5/8 | M 30.0 | 41 | 52.50 | 33.00 | 170 bar 2465 psi |
| LMJ20T32 | 1 5/8 | M 32.0 | 41 | 52.50 | 33.00 | 170 bar 2465 psi |
