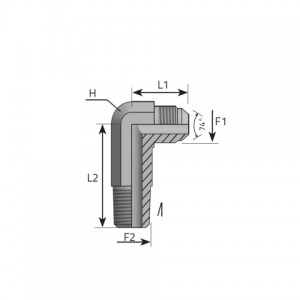

| Code | F1 inch | F2 inch | H mm | L1 mm | L2 mm | Pressure |
|---|---|---|---|---|---|---|
| LMJ04MGK02L | 7/16 | 1/8 | 14 | 23.50 | 39.50 | 345 bar 5003 psi |
| LMJ04MGK04L | 7/16 | 1/4 | 19 | 24.00 | 52.50 | 345 bar 5003 psi |
| LMJ05MGK02L | 1/2 | 1/8 | 14 | 25.00 | 41.50 | 345 bar 5003 psi |
| LMJ05MGK04L | 1/2 | 1/4 | 19 | 25.00 | 52.50 | 345 bar 5003 psi |
| LMJ06MGK02L | 9/16 | 1/8 | 19 | 27.50 | 48.50 | 345 bar 5003 psi |
| LMJ06MGK04L | 9/16 | 1/4 | 19 | 27.50 | 52.50 | 345 bar 5003 psi |
| LMJ06MGK06L | 9/16 | 3/8 | 19 | 29.50 | 61.00 | 310 bar 4495 psi |
| LMJ08MGK04L | 3/4 | 1/4 | 19 | 32.00 | 61.00 | 310 bar 4495 psi |
| LMJ08MGK06L | 3/4 | 3/8 | 14 | 32.00 | 61.00 | 310 bar 4495 psi |
| LMJ08MGK08L | 3/4 | 1/2 | 22 | 34.00 | 73.00 | 240 bar 3480 psi |
| LMJ10MGK06L | 7/8 | 3/8 | 22 | 37.00 | 68.50 | 240 bar 3480 psi |
| LMJ10MGK08L | 7/8 | 1/2 | 22 | 37.00 | 73.00 | 240 bar 3480 psi |
| LMJ10MGK12L | 7/8 | 3/4 | 27 | 39.00 | 82.50 | 240 bar 3480 psi |
| LMJ12MGK08L | 1 1/16 | 1/2 | 27 | 42.00 | 82.50 | 240 bar 3480 psi |
| LMJ12MGK12L | 1 1/16 | 3/4 | 33 | 42.00 | 82.50 | 240 bar 3480 psi |
| LMJ16MGK12L | 1 5/16 | 3/4 | 33 | 46.00 | 98.00 | 240 bar 3480 psi |
| LMJ16MGK16L | 1 5/16 | 1 | 33 | 46.00 | 103.00 | 210 bar 3045 psi |
| LMJ20MGK16L | 1 5/8 | 1 | 41 | 57.00 | 127.00 | 170 bar 2465 psi |
| LMJ20MGK20L | 1 5/8 | 1 1/4 | 41 | 52.50 | 127.00 | 170 bar 2465 psi |
