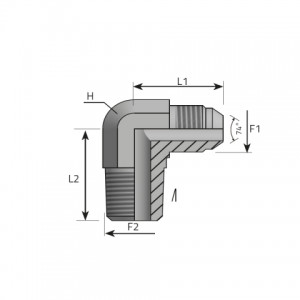

Code | F1 inch | F2 inch | H mm | L1 mm | L2 mm | Pressure |
---|---|---|---|---|---|---|
LMJ04MN02 | 7/16 | 1/8 | 14 | 23.50 | 20.00 | 345 bar 5003 psi |
LMJ04MN04 | 7/16 | 1/4 | 14 | 24.50 | 28.00 | 345 bar 5003 psi |
LMJ05MN02 | 1/2 | 1/8 | 14 | 25.00 | 20.00 | 345 bar 5003 psi |
LMJ05MN04 | 1/2 | 1/4 | 14 | 25.00 | 28.00 | 345 bar 5003 psi |
LMJ06MN02 | 9/16 | 1/8 | 14 | 27.50 | 20.00 | 345 bar 5003 psi |
LMJ06MN04 | 9/16 | 1/4 | 14 | 27.50 | 28.00 | 345 bar 5003 psi |
LMJ06MN06 | 9/16 | 3/8 | 19 | 32.00 | 31.00 | 310 bar 4495 psi |
LMJ06MN08 | 9/16 | 1/2 | 22 | 32.00 | 37.50 | 240 bar 3480 psi |
LMJ08MN04 | 3/4 | 1/4 | 19 | 32.00 | 31.00 | 310 bar 4495 psi |
LMJ08MN06 | 3/4 | 3/8 | 19 | 32.00 | 31.00 | 310 bar 4495 psi |
LMJ08MN08 | 3/4 | 1/2 | 22 | 34.00 | 37.50 | 240 bar 3480 psi |
LMJ08MN12 | 3/4 | 3/4 | 27 | 36.00 | 40.00 | 240 bar 3480 psi |
LMJ10MN06 | 7/8 | 3/8 | 22 | 37.00 | 31.50 | 240 bar 3480 psi |
LMJ10MN08 | 7/8 | 1/2 | 22 | 39.00 | 40.00 | 240 bar 3480 psi |
LMJ10MN12 | 7/8 | 3/4 | 27 | 40.50 | 42.00 | 240 bar 3480 psi |
LMJ12MN08 | 1 1/16 | 1/2 | 27 | 42.00 | 37.50 | 240 bar 3480 psi |
LMJ12MN12 | 1 1/16 | 3/4 | 27 | 42.00 | 40.00 | 240 bar 3480 psi |
LMJ16MN12 | 1 5/16 | 3/4 | 33 | 46.00 | 44.50 | 210 bar 3045 psi |
LMJ16MN16 | 1 5/16 | 1 | 33 | 46.00 | 50.00 | 210 bar 3045 psi |
LMJ20MN16 | 1 5/8 | 1 | 41 | 52.50 | 59.00 | 170 bar 2465 psi |
LMJ20MN20 | 1 5/8 | 1 1/4 | 41 | 52.50 | 60.00 | 170 bar 2465 psi |
